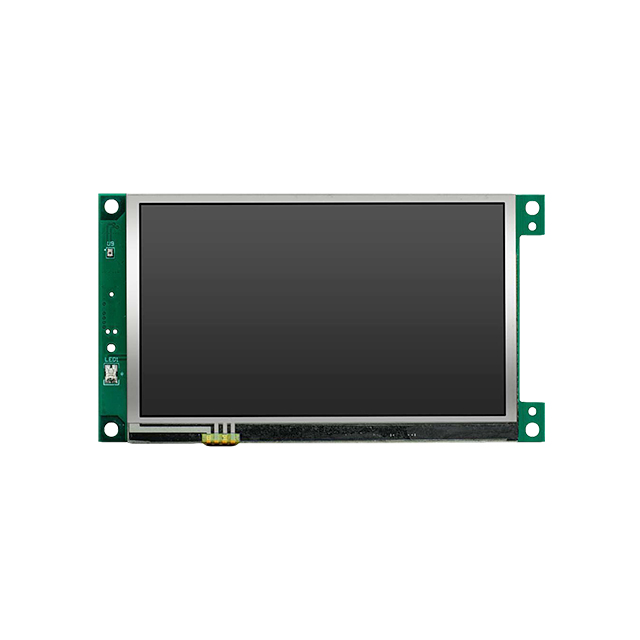

SIM231-A03-R32ALM-01

Obsolete

E2IP Technologies Inc.

LCD MODULE 4.3" 480X272X24BPP MV

Search across all available documentation for this part.

Obsolete

E2IP Technologies Inc.

LCD MODULE 4.3" 480X272X24BPP MV

Technical Specifications

Parameters and characteristics for this part

Part	Backlight	Display Mode	Dot Pixels [y]	Dot Pixels [x]	Diagonal Screen Size	Diagonal Screen Size	Graphics Color	Dot Pitch [x]	Dot Pitch [y]	Viewing Area [y]	Viewing Area [x]	Interface	Display Type	Primary Attributes	Primary Attributes [y]	Primary Attributes	Primary Attributes [x]	Supplied Contents	Secondary Attributes	Utilized IC / Part	Embedded	Type	Function	Touchscreen
E2IP Technologies Inc. SIM231-A02-N32ALM-01	LED - White	Transmissive	272	480	109.22 mm	4.3 in	Blue Green Red	0.2 mm	0.2 mm	56.46 mm	97.64 mm	I2C SPI UART	TFT - Color
E2IP Technologies Inc. SIM231-A01-DEV-01														4.3 in	272	WQVGA	480	Board(s) Cable(s)	Resistive 4-Wire Touch Screen	SIM231	32-Bit MCU	Display	LCD Touch Screen
E2IP Technologies Inc. SIM231-A01-R32ALM-10			272	480	109.22 mm	4.3 in				53.86 mm	95.04 mm		TFT - Color											Resistive
E2IP Technologies Inc. SIM231-A01-R32ALM-01	LED - White	Transmissive	272	480	109.22 mm	4.3 in	Blue Green Red	0.2 mm	0.2 mm	56.46 mm	97.64 mm	I2C SPI UART	TFT - Color											Resistive
E2IP Technologies Inc. SIM231-A03-R32ALM-01	LED - White	Transmissive	272	480	109.22 mm	4.3 in	Blue Green Red	0.2 mm	0.2 mm	56.46 mm	97.64 mm	I2C SPI UART	TFT - Color											Resistive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, SPI, UART 4.3" (109.22mm) 480 x 272

Technical documentation and resources
