A22H165MJ
ActiveSTMicroelectronics
IC AMP CLASS G STEREO 16FLIPCHIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A22H165MJ
ActiveSTMicroelectronics
IC AMP CLASS G STEREO 16FLIPCHIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A22H165MJ | A22H165 Series |
|---|---|---|
| Features | Short-Circuit, Thermal Protection, Depop | Thermal Protection, Depop, Short-Circuit |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | 2-Channel (Stereo) | 2-Channel (Stereo) |

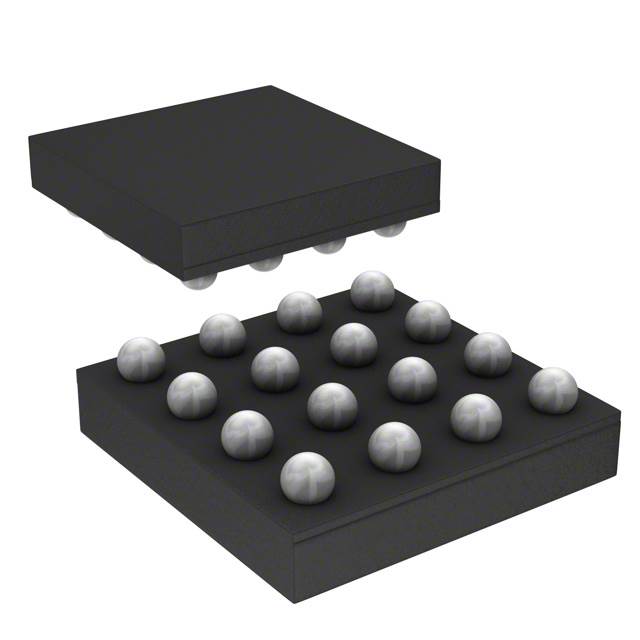

| Package / Case | FCBGA, 16-WFBGA | FCBGA, 16-WFBGA |
| Supplier Device Package | 16-FlipChip (1.65x1.65) | 16-FlipChip (1.65x1.65) |
| Type | Class G | Class G |
| Voltage - Supply [Max] | 4.8 V | 4.8 V |
| Voltage - Supply [Min] | 2.3 V | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.59 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.35 | |||
| 100 | $ 1.11 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.72 | |||
| 2500 | $ 0.67 | |||
| Digi-Reel® | 1 | $ 1.59 | ||
| 10 | $ 1.42 | |||
| 25 | $ 1.35 | |||
| 100 | $ 1.11 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.72 | |||
| 2500 | $ 0.67 | |||
A22H165 Series
IC AMP CLASS G STEREO 16FLIPCHIP
| Part | Mounting Type | Supplier Device Package | Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics A22H165J | Surface Mount | 16-FlipChip (1.65x1.65) | Class G | Depop, Thermal Protection | 85 °C | -40 °C | 2-Channel (Stereo) | 16-WFBGA, FCBGA | 2.3 V | 4.8 V |
STMicroelectronics A22H165MJ | Surface Mount | 16-FlipChip (1.65x1.65) | Class G | Depop, Short-Circuit, Thermal Protection | 85 °C | -40 °C | 2-Channel (Stereo) | 16-WFBGA, FCBGA | 2.3 V | 4.8 V |
Description
General part information
A22H165 Series
Amplifier IC 2-Channel (Stereo) Class G 16-FlipChip (1.65x1.65)
Documents
Technical documentation and resources
