1-826942-5

Active

TE Connectivity AMP Connectors

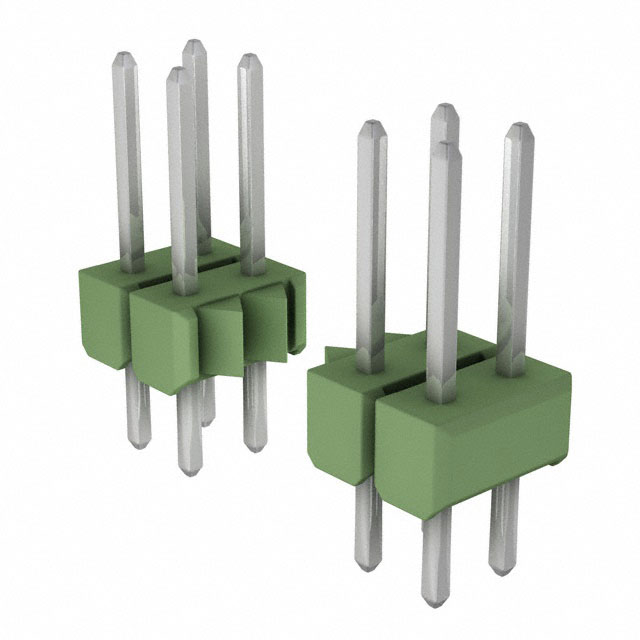

CONN HEADER VERT 30POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

1-826942-5

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 30POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-826942-5	826942 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	78.7 µin	78.7 µin
Contact Finish Thickness - Mating	2 µm	2 µm
Contact Finish Thickness - Post	2 çm	2 çm
Contact Finish Thickness - Post	78.7 çin	78.7 çin
Contact Length - Mating	0.228 in	0.228 in
Contact Length - Mating	5.8 mm	5.8 mm
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	30	6 - 100
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.465 in	0.465 in
Overall Contact Length	11.81 mm	11.81 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826942 Series

CONN HEADER VERT 64POS 2.54MM

Part	Style	Current Rating (Amps)	Connector Type	Insulation Material	Contact Finish - Post	Number of Positions	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Mounting Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Termination	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Number of Rows	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Shrouding
TE Connectivity AMP Connectors 3-826942-2	Board to Board, Cable	5 A	Breakaway, Header	Polybutylene Terephthalate (PBT)	Tin	64	0.465 in	11.81 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Male Pin	Through Hole	All	-65 ░C	105 ░C	2 çm	78.7 çin	Square	Solder	Green	78.7 µin	2 µm	Push-Pull	0.228 in	5.8 mm	Copper Alloy	2	3.2 mm	0.126 in	UL94 V-0	Unshrouded
TE Connectivity AMP Connectors 1-826942-5	Board to Board, Cable	5 A	Breakaway, Header	Polybutylene Terephthalate (PBT)	Tin	30	0.465 in	11.81 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Male Pin	Through Hole	All	-65 ░C	105 ░C	2 çm	78.7 çin	Square	Solder	Green	78.7 µin	2 µm	Push-Pull	0.228 in	5.8 mm	Copper Alloy	2	3.2 mm	0.126 in	UL94 V-0	Unshrouded
TE Connectivity AMP Connectors 826942-3	Board to Board, Cable	5 A	Breakaway, Header	Polybutylene Terephthalate (PBT)	Tin	6	0.465 in	11.81 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Male Pin	Through Hole	All	-65 ░C	105 ░C	2 çm	78.7 çin	Square	Solder	Green	78.7 µin	2 µm	Push-Pull	0.228 in	5.8 mm	Copper Alloy	2	3.2 mm	0.126 in	UL94 V-0	Unshrouded
TE Connectivity AMP Connectors 5-826942-0	Board to Board, Cable	5 A	Breakaway, Header	Polybutylene Terephthalate (PBT)	Tin	100	0.465 in	11.81 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	Male Pin	Through Hole	All	-65 ░C	105 ░C	2 çm	78.7 çin	Square	Solder	Green	78.7 µin	2 µm	Push-Pull	0.228 in	5.8 mm	Copper Alloy	2	3.2 mm	0.126 in	UL94 V-0	Unshrouded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 1.09

Description

General part information

826942 Series

Connector Header Through Hole 30 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
