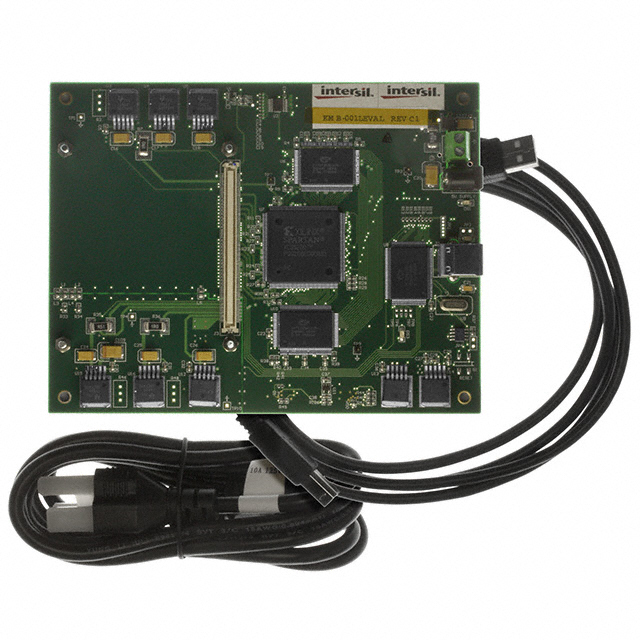

MOTHERBOARD FOR LVDS ADC CARD
KMB001LEVAL
ObsoleteRenesas Electronics Corporation
MOTHERBOARD FOR LVDS ADC CARD
Description
General part information
KMB001LEVAL
KDCxxxx Daughtercard with KADxxxx ADC FemtoCharge™ 8 ~ 14 Bit 40 ~ 500M Samples per Second Analog to Digital Converter (ADC) Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | KMB001LEVAL |
|---|---|
| Contents | Board, Power Supply, Cable |
| Data Interface | Parallel |
| Maximum Sampling Rate (Per Second) | 500 MHz |
| Minimum Sampling Rate (Per Second) | 40 Hz |
| Number of A/D Converters | 1 count |
| Number of Bits (Max) | 14 bits |
| Number of Bits (Min) | 8 bits |
| Supplied Contents | Board(s), Power Supply, Cable(s) |
| Utilized IC / Part | KDCxxxx Daughtercard with KADxxxx ADC |
