S9341-45R
ActiveHarwin Inc.

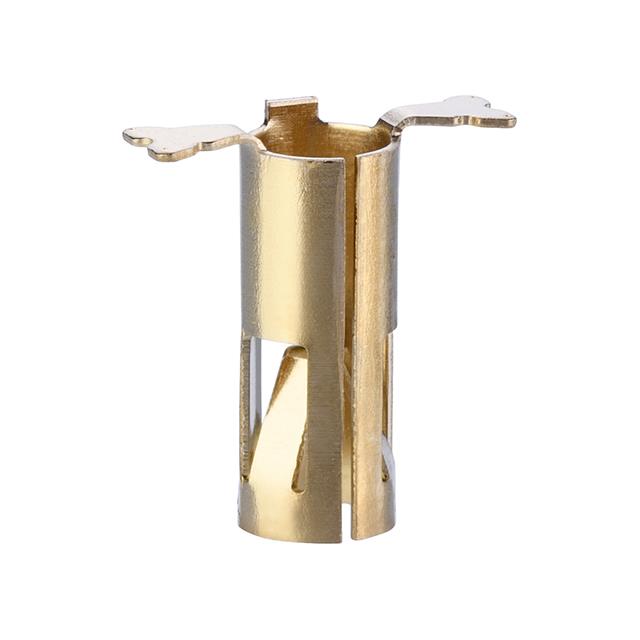

SYCAMORE CONTACT 1.00MM DIA. BOTTOM ENTRY SMT SOCKET IN TAPE & REEL
S9341-45R
ActiveHarwin Inc.
SYCAMORE CONTACT 1.00MM DIA. BOTTOM ENTRY SMT SOCKET IN TAPE & REEL
Description
General part information
S9341-45R
Pin Receptacle Connector 0.031" ~ 0.051" (0.80mm ~ 1.30mm) No Tail Surface Mount - Bottom Entry
Technical Specifications
Parameters and characteristics for this part
| Specification | S9341-45R |
|---|---|
| Accepts Pin Diameter (Max) | 0.051 in |
| Accepts Pin Diameter (Min) | 0.031 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.94 µin |
| Contact Material | Beryllium Copper |
| Insertion Force (Maximum) | 6 N |
| Insertion Force (Minimum) | 3 N |
| Length - Overall | 0.248 in |
| Mounting Hole Diameter | 0.102 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -50 °C |
| Pin Hole Diameter | 0.077 in |
| Socket Depth | 0.102 in |
| Tail Type | No Tail |
| Termination | Surface Mount - Bottom Entry |
