Description
General part information

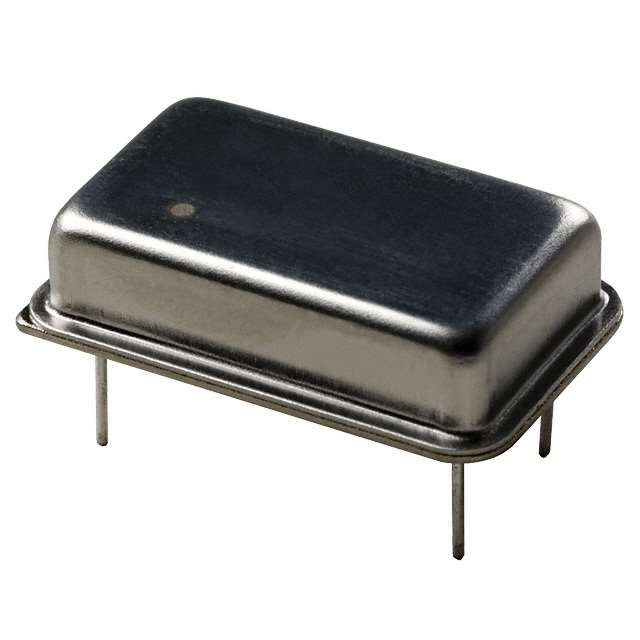

ECS-P143-AN
XO (Standard) HCMOS 1 MHz ~ 125 MHz Programmable Oscillator 3.3V Enable/Disable 14-DIP, 4 Leads (Full Size, Metal Can)
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-P143-AN |
|---|---|
| Available Frequency Range (Maximum) | 125 MHz |
| Available Frequency Range (Minimum) | 1 MHz |
| Base Resonator | Crystal |
| Current - Supply (Max) | 28 mA |
| Frequency Stability (Total) | 100 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS |
| Package Leads | 4 Leads |
| Package Name | 14-DIP |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Size / Dimension Length | 0.815 in |
| Size / Dimension Width | 0.508 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
