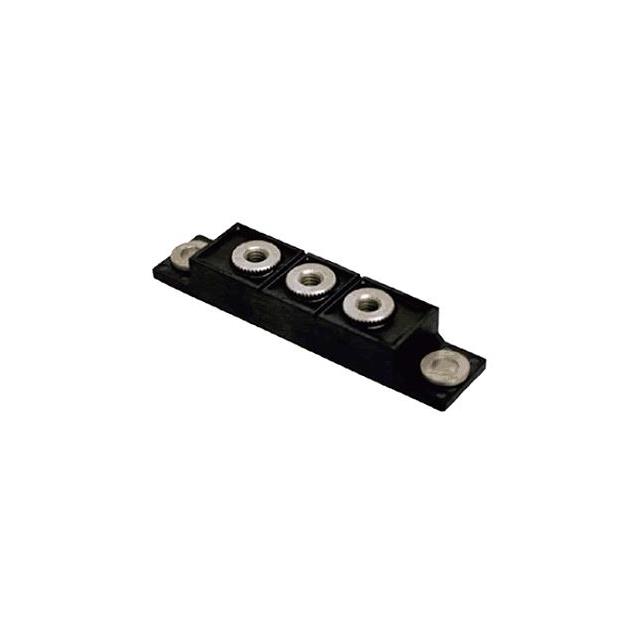

BKA400AA10

Active

SanRex Corporation

100V 1 PAIR OF COMMON CATHODES 930MV@400A 400A SCHOTTKY DIODES ROHS

Search across all available documentation for this part.

Active

SanRex Corporation

100V 1 PAIR OF COMMON CATHODES 930MV@400A 400A SCHOTTKY DIODES ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BKA400AA10	BKA400 Series

Current - Average Rectified (Io) (per Diode)	400 A	200 - 400 A
Current - Reverse Leakage @ Vr	140 mA	40 - 140 mA
Diode Configuration	1 Pair Common Cathode	1 Pair Common Cathode
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Speed	200 mA, 500 ns	200 - 500 mA
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V	50 - 100 V
Voltage - Forward (Vf) (Max) @ If	-	730 mV

DIODE MODULE SCHOTTKY 50V 200A

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io) (per Diode)	Technology	Mounting Type	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Current - Reverse Leakage @ Vr
SanRex Corporation BKR400ABZ50	50 V	200 A	Schottky	Chassis Mount	200 mA, 500 ns	150 °C	-40 °C	Module	730 mV	1 Pair Common Cathode
SanRex Corporation BKA400AA10	100 V	400 A	Schottky	Chassis Mount	200 mA, 500 ns	150 °C	-40 °C	Module		1 Pair Common Cathode	140 mA
SanRex Corporation BKR400AB10	100 V	400 A	Schottky	Chassis Mount	200 mA, 500 ns	150 °C	-40 °C	Module		1 Pair Common Cathode	40 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 100 V 400A Chassis Mount Module
