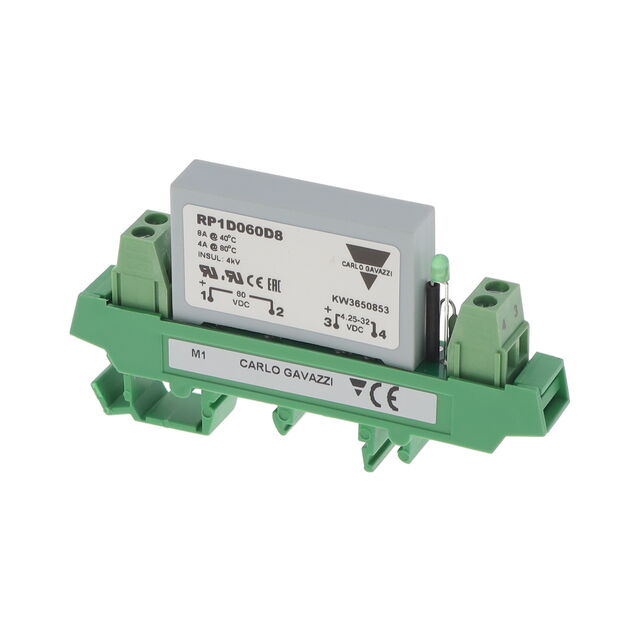

RP1D060D8M1
ActiveCARLO GAVAZZI
SOLID STATE RELAY, 8 A, 60 VDC, SOCKET, QUICK CONNECT, DC SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
RP1D060D8M1
ActiveCARLO GAVAZZI
SOLID STATE RELAY, 8 A, 60 VDC, SOCKET, QUICK CONNECT, DC SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RP1D060D8M1 |
|---|---|
| Approval Agency | CE, UKCA, EAC, cURus |
| Load Current | 8 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Output Type | DC |
| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4.25 V |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RP1D060 Series
Solid State SPST-NO (1 Form A) 4-SIP
