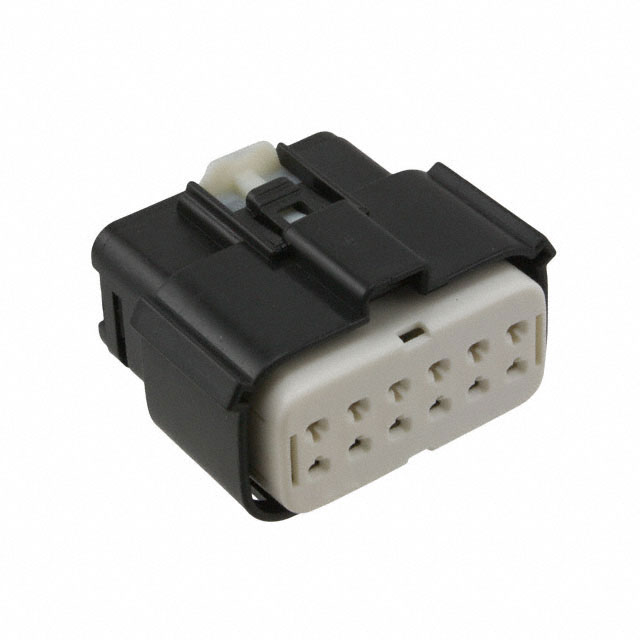

Specification	0194180037

Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	IP67
Insulation Material	Polyester, Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Pitch	0.23 in
Row Spacing	0.236 in

019418 Series

Part	Pitch	Contact Type	Contact Termination	Number of Rows	Row Spacing	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Material	Fastening Type	Features	Number of Positions	Mounting Type	Note
Molex 0194180002	0.23 in	Female Socket	Crimp	2	0.236 in	Receptacle	120 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	Latch Holder	Connector Position Assurance (CPA) IP67	8	Free Hanging (In-Line)	Contacts Not Included
Molex 0194180025	0.23 in	Female Socket	Crimp	2	0.236 in	Receptacle	120 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	Latch Holder	IP67	10	Free Hanging (In-Line)	Contacts Not Included
Molex 0194180004	0.23 in	Female Socket	Crimp	2	0.236 in	Receptacle	120 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	Latch Holder	Connector Position Assurance (CPA) IP67	4	Free Hanging (In-Line)	Contacts Not Included
Molex 0194180023	0.23 in	Female Socket	Crimp	2	0.236 in	Receptacle	120 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	Latch Holder	IP67	8	Free Hanging (In-Line)	Contacts Not Included
Molex 0194180019	0.23 in	Female Socket	Crimp	2	0.236 in	Receptacle	120 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	Latch Holder	IP67	4	Free Hanging (In-Line)	Contacts Not Included
Molex 0194180022	0.23 in	Female Socket	Crimp	2	0.236 in	Receptacle	120 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	Latch Holder	IP67	8	Free Hanging (In-Line)	Contacts Not Included
Molex 0194180024	0.23 in	Female Socket	Crimp	2	0.236 in	Receptacle	120 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	Latch Holder	IP67	10	Free Hanging (In-Line)	Contacts Not Included
Molex 0194180005	0.23 in	Female Socket	Crimp	2	0.236 in	Receptacle	120 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	Latch Holder	Connector Position Assurance (CPA) IP67	4	Free Hanging (In-Line)	Contacts Not Included
Molex 0194180001	0.23 in	Female Socket	Crimp	2	0.236 in	Receptacle	120 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	Latch Holder	Connector Position Assurance (CPA) IP67	8	Free Hanging (In-Line)	Contacts Not Included
Molex 0194180016	0.23 in	Female Socket	Crimp	1		Receptacle	120 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	Latch Holder	IP67	2	Free Hanging (In-Line)	Contacts Not Included
