AMES200-36SNZ-P

Active

aimtec

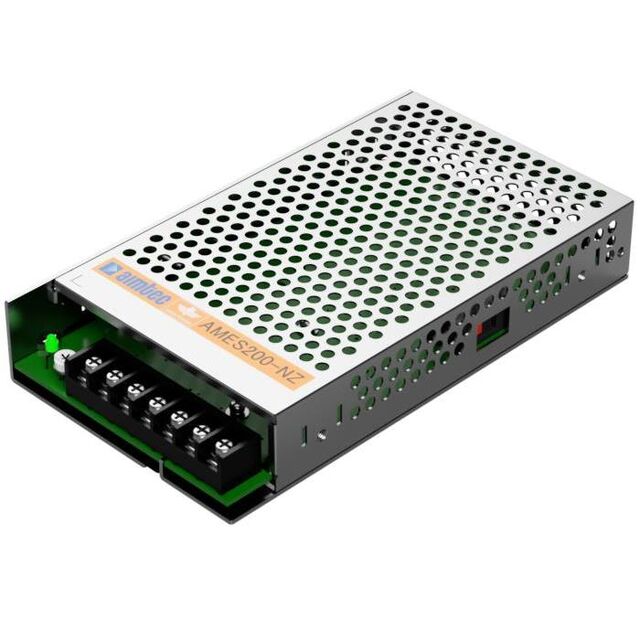

AC/DC CONVERTER 36V 212W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMES200-36SNZ-P

Active

aimtec

AC/DC CONVERTER 36V 212W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.19
		5	$ 28.45
		10	$ 27.72
		25	$ 26.80
		50	$ 26.12
		100	$ 25.46
		250	$ 24.61

Description

General part information

AMES200 Series

Enclosed AC DC Converters 1 Output 36V 90 ~ 264 VAC, 240 ~ 373 VDC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AMES200-36SNZ-P	AMES200 Series

Applications	Household Appliances, ITE (Commercial)	Household Appliances, ITE (Commercial)
Approval Agency	UL, EN, CB, CE, IEC	UL, EN, CB, CE, IEC
Current - Output 1	-	4.4 - 30 A
Efficiency	89 %	87 - 89 %
Features	Adjustable Output	Adjustable Output, Universal Input, DC Input Capable
Minimum Load Required	-	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-30 °C	-30 °C
Power (Watts)	212 W	150 - 212 W
Size / Dimension [x]	7.05 in	7.05 in
Size / Dimension [x]	179 mm	179 mm
Size / Dimension [y]	99 mm	99 mm
Size / Dimension [y]	3.9 in	3.9 in
Size / Dimension [z]	1.18 in	1.18 in
Size / Dimension [z]	30 mm	30 mm
Standard Number	60335-1, 62368-1	60335-1, 62368-1, 61558-1
Type	Enclosed	Conformal Coated, Enclosed
Voltage - Input [Max]	373 VDC, 264 VAC	264 - 373 VDC
Voltage - Input [Min]	90 VAC, 240 V	90 - 240 VAC
Voltage - Isolation	3000 V	3000 - 4000 V
Voltage - Output 1	36 V	5 - 48 V
Voltage - Output 1	-	13.8 V
Voltage - Output 1	-	10.2 V

AMES200 Series

AC/DC CONVERTER 12V 204W

Part	Voltage - Output 1	Power (Watts)	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Applications	Features	Type	Approval Agency	Standard Number	Voltage - Isolation
aimtec AMES200-12SNZ-Q	12 V	204 W	Chassis Mount	7.05 in	1.18 in	99 mm	179 mm	30 mm	3.9 in	70 °C	-30 °C	17 A	87.5 %	264 VAC, 373 VDC	90 VAC, 240 V	1	Household Appliances, ITE (Commercial)	Adjustable Output	Conformal Coated, Enclosed	CB, CE, EN, IEC, UL	60335-1, 62368-1	3000 V
aimtec AMES200-36SNZ	36 V	212 W	Chassis Mount	7.05 in	1.18 in	99 mm	179 mm	30 mm	3.9 in	70 °C	-30 °C		89 %	264 VAC, 373 VDC	90 VAC, 240 V	1	Household Appliances, ITE (Commercial)	Adjustable Output	Enclosed	CB, CE, EN, IEC, UL	60335-1, 62368-1	3000 V
aimtec AMES200-12SNZ	12 V	204 W	Chassis Mount	7.05 in	1.18 in	99 mm	179 mm	30 mm	3.9 in	70 °C	-30 °C	17 A	87.5 %	264 VAC, 373 VDC	90 VAC, 240 V	1	Household Appliances, ITE (Commercial)	Adjustable Output	Enclosed	CB, CE, EN, IEC, UL	60335-1, 62368-1	3000 V
aimtec AMES200-48SNZ-P	48 V	211 W	Chassis Mount	7.05 in	1.18 in	99 mm	179 mm	30 mm	3.9 in	70 °C	-30 °C	4.4 A		264 VAC, 373 VDC	90 VAC, 240 V	1	Household Appliances, ITE (Commercial)	Adjustable Output	Enclosed	CB, CE, EN, IEC, UL	60335-1, 62368-1	3000 V
aimtec AMES200-36SNZ-Q	36 V	212 W	Chassis Mount	7.05 in	1.18 in	99 mm	179 mm	30 mm	3.9 in	70 °C	-30 °C		89 %	264 VAC, 373 VDC	90 VAC, 240 V	1	Household Appliances, ITE (Commercial)	Adjustable Output	Conformal Coated, Enclosed	CB, CE, EN, IEC, UL	60335-1, 62368-1	3000 V
aimtec AMES200-15SNZ-P	15 V	210 W	Chassis Mount	7.05 in	1.18 in	99 mm	179 mm	30 mm	3.9 in	70 °C	-30 °C	14 A	88 %	264 VAC, 373 VDC	90 VAC, 240 V	1	Household Appliances, ITE (Commercial)	Adjustable Output	Enclosed	CB, CE, EN, IEC, UL	60335-1, 62368-1	3000 V
aimtec AMES200-48SNZ-Q	48 V	211 W	Chassis Mount	7.05 in	1.18 in	99 mm	179 mm	30 mm	3.9 in	70 °C	-30 °C	4.4 A		264 VAC, 373 VDC	90 VAC, 240 V	1	Household Appliances, ITE (Commercial)	Adjustable Output	Conformal Coated, Enclosed	CB, CE, EN, IEC, UL	60335-1, 62368-1	3000 V
aimtec AMES200-24SNZ-P	24 V	211 W	Chassis Mount	7.05 in	1.18 in	99 mm	179 mm	30 mm	3.9 in	70 °C	-30 °C	8.8 A	88.5 %	264 VAC, 373 VDC	90 VAC, 240 V	1	Household Appliances, ITE (Commercial)	Adjustable Output	Enclosed	CB, CE, EN, IEC, UL	60335-1, 62368-1	3000 V
aimtec AMES200-24SNZ	24 V	211 W	Chassis Mount	7.05 in	1.18 in	99 mm	179 mm	30 mm	3.9 in	70 °C	-30 °C	8.8 A	88.5 %	264 VAC, 373 VDC	90 VAC, 240 V	1	Household Appliances, ITE (Commercial)	Adjustable Output	Enclosed	CB, CE, EN, IEC, UL	60335-1, 62368-1	3000 V
aimtec AMES200-48SNZ	48 V	211 W	Chassis Mount	7.05 in	1.18 in	99 mm	179 mm	30 mm	3.9 in	70 °C	-30 °C	4.4 A		264 VAC, 373 VDC	90 VAC, 240 V	1	Household Appliances, ITE (Commercial)	Adjustable Output	Enclosed	CB, CE, EN, IEC, UL	60335-1, 62368-1	3000 V
