5-102570-2

Active

TE Connectivity AMP Connectors

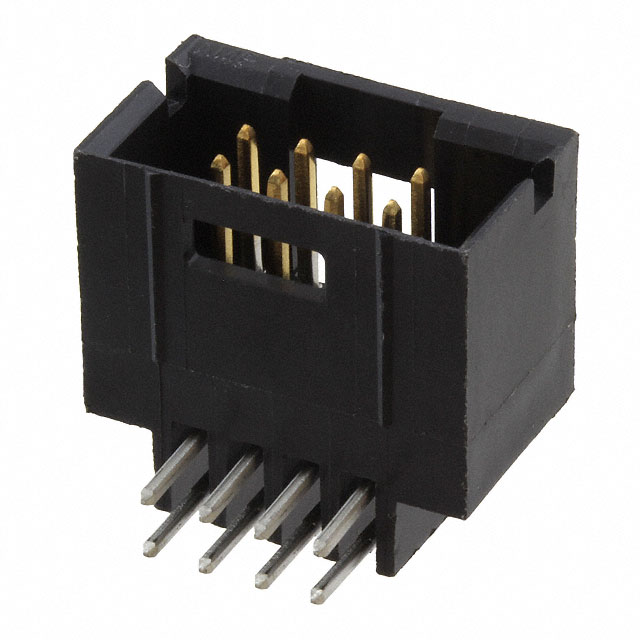

CONN HEADER R/A 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

5-102570-2

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 8POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5-102570-2	102570 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	0.135 in	0.135 in
Contact Length - Post [x]	3.43 mm	3.43 mm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Black	Black
Insulation Height	0.4 in	0.4 in
Insulation Height	10.16 mm	10.16 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	8	8 - 40
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2016	$ 2.16

102570 Series

CONN HEADER R/A 8POS 2.54MM

Part	Shrouding	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Insulation Material	Number of Positions	Contact Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Mating	Insulation Color	Contact Shape	Termination	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Material Flammability Rating	Connector Type	Contact Finish - Post	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type
TE Connectivity AMP Connectors 5-102570-2	Shrouded - 4 Wall	3 A	2.54 mm	0.1 in	Detent Lock	Thermoplastic	8	Phosphor Bronze	0.318 "	8.08 mm	Gold	Black	Square	Solder	2	0.1 in	2.54 mm	2.54 µm	100 µin	0.4 in	10.16 mm	UL94 V-0	Header	Tin	Male Pin	15 µin	0.38 µm	All	-65 ░C	105 ░C	Board to Board, Cable	0.135 in	3.43 mm	Through Hole, Right Angle
TE Connectivity AMP Connectors 1-102570-0	Shrouded - 4 Wall	3 A	2.54 mm	0.1 in	Detent Lock	Thermoplastic	24	Phosphor Bronze	0.318 "	8.08 mm	Gold	Black	Square	Solder	2	0.1 in	2.54 mm	2.54 µm	100 µin	0.4 in	10.16 mm	UL94 V-0	Header	Tin-Lead	Male Pin	15 µin	0.38 µm	All	-65 ░C	105 ░C	Board to Board, Cable	0.135 in	3.43 mm	Through Hole, Right Angle
TE Connectivity AMP Connectors 6-102570-0	Shrouded - 4 Wall	3 A	2.54 mm	0.1 in	Detent Lock	Thermoplastic	24	Phosphor Bronze	0.318 "	8.08 mm	Gold	Black	Square	Solder	2	0.1 in	2.54 mm	2.54 µm	100 µin	0.4 in	10.16 mm	UL94 V-0	Header	Tin	Male Pin	15 µin	0.38 µm	All	-65 ░C	105 ░C	Board to Board, Cable	0.135 in	3.43 mm	Through Hole, Right Angle
TE Connectivity AMP Connectors 5-102570-1	Shrouded - 4 Wall	3 A	2.54 mm	0.1 in	Detent Lock	Thermoplastic	40	Phosphor Bronze	0.318 "	8.08 mm	Gold	Black	Square	Solder	2	0.1 in	2.54 mm	2.54 µm	100 µin	0.4 in	10.16 mm	UL94 V-0	Header	Tin	Male Pin	15 µin	0.38 µm	All	-65 ░C	105 ░C	Board to Board, Cable	0.135 in	3.43 mm	Through Hole, Right Angle
TE Connectivity AMP Connectors 102570-1	Shrouded - 4 Wall	3 A	2.54 mm	0.1 in	Detent Lock	Thermoplastic	40	Phosphor Bronze	0.318 "	8.08 mm	Gold	Black	Square	Solder	2	0.1 in	2.54 mm	2.54 µm	100 µin	0.4 in	10.16 mm	UL94 V-0	Header	Tin-Lead	Male Pin	15 µin	0.38 µm	All	-65 ░C	105 ░C	Board to Board, Cable	0.135 in	3.43 mm	Through Hole, Right Angle
TE Connectivity AMP Connectors 5-102570-3	Shrouded - 4 Wall	3 A	2.54 mm	0.1 in	Detent Lock	Thermoplastic	10	Phosphor Bronze	0.318 "	8.08 mm	Gold	Black	Square	Solder	2	0.1 in	2.54 mm	2.54 µm	100 µin	0.4 in	10.16 mm	UL94 V-0	Header	Tin	Male Pin	15 µin	0.38 µm	All	-65 ░C	105 ░C	Board to Board, Cable	0.135 in	3.43 mm	Through Hole, Right Angle
TE Connectivity AMP Connectors 1-102570-1	Shrouded - 4 Wall	3 A	2.54 mm	0.1 in	Detent Lock	Thermoplastic	26	Phosphor Bronze	0.318 "	8.08 mm	Gold	Black	Square	Solder	2	0.1 in	2.54 mm	2.54 µm	100 µin	0.4 in	10.16 mm	UL94 V-0	Header	Tin-Lead	Male Pin	15 µin	0.38 µm	All	-65 ░C	105 ░C	Board to Board, Cable	0.135 in	3.43 mm	Through Hole, Right Angle
TE Connectivity AMP Connectors 6-102570-1	Shrouded - 4 Wall	3 A	2.54 mm	0.1 in	Detent Lock	Thermoplastic	26	Phosphor Bronze	0.318 "	8.08 mm	Gold	Black	Square	Solder	2	0.1 in	2.54 mm	2.54 µm	100 µin	0.4 in	10.16 mm	UL94 V-0	Header	Tin	Male Pin	15 µin	0.38 µm	All	-65 ░C	105 ░C	Board to Board, Cable	0.135 in	3.43 mm	Through Hole, Right Angle

Description

General part information

102570 Series

Connector Header Through Hole, Right Angle 8 position 0.100" (2.54mm)
