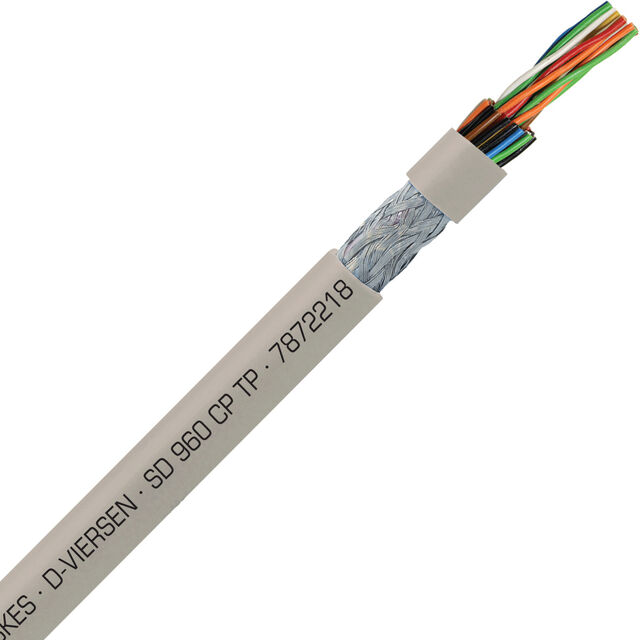

Specification	7872218

Cable Type	Conductor, Multi
Conductor Arrangement	Twisted
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand Count	42
Conductor Strand Gauge	38 AWG
Features	Abrasion Resistant, Oil Resistant
Jacket (Insulation) Diameter	0.646 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	36
Number of Conductors - Pair	18
Operating Temperature	80 °C
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-30 °C
Ratings	Style, UL, 20910
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Industrial, Signal, Control
Wire Gauge	22 AWG
