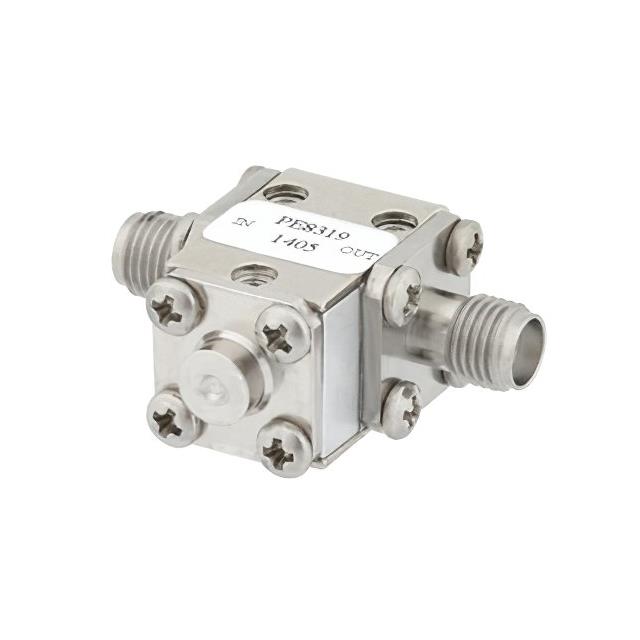

PE8319
ActivePasternack
ISOLATOR WITH 20 DB ISOLATION FR
PE8319
ActivePasternack
ISOLATOR WITH 20 DB ISOLATION FR
Description
General part information
PE8319
ISOLATOR WITH 20 DB ISOLATION FR
Technical Specifications
Parameters and characteristics for this part
| Specification | PE8319 |
|---|---|
| Connector Size | 2.92 mm |
| Connector Type | FEMALE, 2.92mm Female |
| Frequency (Max) | 31 GHz |
| Frequency (Min) | 27 GHz |
| Insertion Loss (Max) | 0.6 dB |
| Isolation (Min) | 20 dB |
| Package / Case | Module |
| Power - Average Forward | 5 W |
| Type | Isolator |
| VSWR | 1.25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
