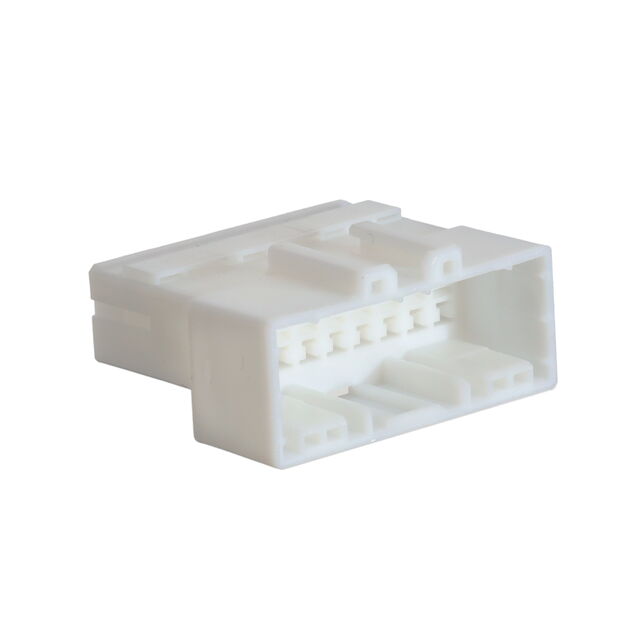

936213-1

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 18POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 18POS

Technical Specifications

Parameters and characteristics for this part

Specification	936213-1

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Tab
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	18
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C

CONN RCPT HSG 18POS

Part	Mounting Type	Insulation Material	Number of Positions	Note	Contact Termination	Color	Number of Rows	Contact Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 936213-1	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	18	Contacts Not Included	Crimp	Natural	2	Tab	Receptacle	-30 ░C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Rectangular Connectors - Housings Receptacle Natural
