PE3W01300-60
ActivePasternack

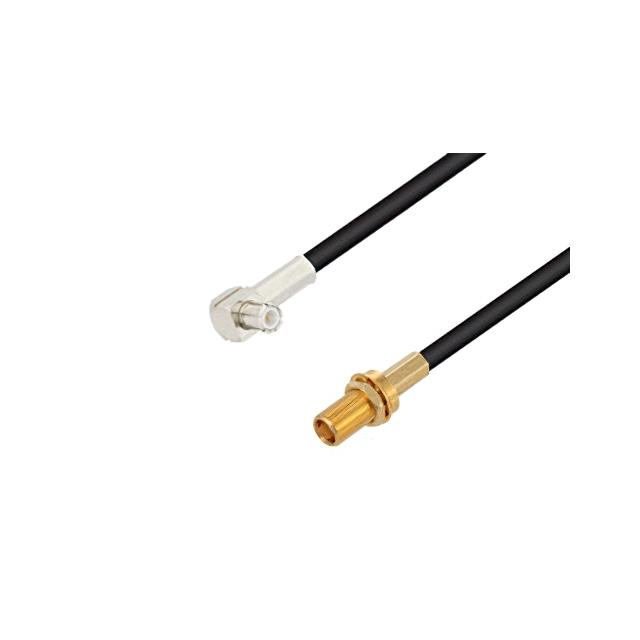

MCX PLUG RIGHT ANGLE TO MCX JACK
PE3W01300-60
ActivePasternack
MCX PLUG RIGHT ANGLE TO MCX JACK
Description
General part information
PE3W01300-60
Cable Assembly Coaxial MCX to MCX RG-174 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3W01300-60 |
|---|---|
| 1st Connector | MCX Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | MCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 174 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 1 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Overall Impedance | 50 Ohms |
| Style | MCX |
