EZ-400-FM-75

Active

Amphenol Times Microwave Systems

F-MALE (PLUG) CRIMP CONNECTOR (N

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EZ-400-FM-75

Active

Amphenol Times Microwave Systems

F-MALE (PLUG) CRIMP CONNECTOR (N

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ-400-FM-75	EZ-400 Series

Body Finish	Nickel	White Bronze, Tin, Nickel
Body Material	-	Brass
Cable Group	LMR-400-75, LMR-400	LMR-400-75, LMR-400
Center Contact Material	Beryllium Copper	Beryllium Copper, Phosphor Bronze, Brass
Center Contact Plating	Gold	Gold
Connector Style	F Type	N Type, QN, TNC, 4.3/10, BNC, F Type
Connector Style	-	4.1
Connector Style	-	9.5
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Push On, Crimp	Crimp, Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Snap-On, Bayonet Lock
Frequency - Max [Max]	2.5 GHz, 2 GHz	2 - 6000 GHz
Housing Color	Silver	Silver
Impedance	75 Ohms	50 - 75 Ohms
Insertion Loss	-	0.1 dB
Mating Cycles	-	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	85 °C, 165 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C, -65 ░C	-65 - -40 °C
Shield Termination	Crimp	Crimp
Voltage Rating	-	2.5 - 1000 kV

EZ-400 Series

N-MALE (PLUG) CRIMP NON-SOLDER P

Part	Connector Type	Contact Termination	Connector Style	Mating Cycles	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Housing Color	Body Finish	Number of Ports	Cable Group	Mounting Type	Center Contact Material	Shield Termination	Dielectric Material	Center Contact Plating	Impedance	Fastening Type	Connector Style [Min]	Connector Style [Max]	Voltage Rating	Insertion Loss
Amphenol Times Microwave Systems EZ-400-NMK-X	Male Pin, Plug	Crimp	N Type
Amphenol Times Microwave Systems EZ-400-NMH-75-X	Male Pin, Plug	Push On	N Type	500	Brass	125 °C	-40 °C	3 GHz	Silver	White Bronze	1	LMR-400-75	Free Hanging (In-Line)	Beryllium Copper	Crimp	Polytetrafluoroethylene (PTFE)	Gold	75 Ohms
Amphenol Times Microwave Systems EZ-400-QNF-X	Female Socket, Jack	Push On	QN		Brass	125 °C	-40 °C	6000 MHz	Silver	Tin	1	LMR-400	Free Hanging (In-Line)	Beryllium Copper	Crimp	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Snap-On
Amphenol Times Microwave Systems EZ-400-QNM-RA-X	Male Pin, Plug	Push On	QN		Brass	125 °C	-40 °C	6000 MHz	Silver	Tin	1	LMR-400	Free Hanging (In-Line), Right Angle	Beryllium Copper	Crimp	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Snap-On
Amphenol Times Microwave Systems EZ-400-4195M-X	Male Pin, Plug	Push On				85 °C	-40 °C	6000 MHz	Silver	White Bronze	1	LMR-400	Free Hanging (In-Line)		Crimp		Gold	50 Ohms		4.1	9.5
Amphenol Times Microwave Systems EZ-400-TF-PL-X	Female Socket, Jack	Push On	TNC	500	Brass	125 °C	-40 °C	6000 MHz	Silver	White Bronze	1	LMR-400	Free Hanging (In-Line)	Beryllium Copper	Crimp	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms				2.5 kV
Amphenol Times Microwave Systems EZ-400-4310M-X	Male Pin, Plug	Push On	4.3/10		Brass	125 °C	-40 °C	6000 MHz	Silver	Tin	1	LMR-400	Free Hanging (In-Line)	Beryllium Copper	Crimp	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms
Amphenol Times Microwave Systems EZ-400-BM-RA-X	Male Pin, Plug	Push On	BNC		Brass	155 °C	-55 °C	4 GHz	Silver	White Bronze	1	LMR-400	Free Hanging (In-Line), Right Angle	Beryllium Copper	Crimp	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Bayonet Lock				0.1 dB
Amphenol Times Microwave Systems EZ-400-TF-X	Female Socket, Jack	Push On	TNC	500	Brass	125 °C	-55 °C	6000 MHz	Silver	White Bronze	1	LMR-400	Free Hanging (In-Line)	Phosphor Bronze	Crimp	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms				750 VDC
Amphenol Times Microwave Systems EZ-400-FMH-75	Male Pin, Plug	Push On	F Type		Brass	85 °C	-40 °C	2 GHz	Silver	Nickel	1	LMR-400-75	Free Hanging (In-Line)	Brass	Crimp	Polytetrafluoroethylene (PTFE)	Gold	75 Ohms				1000 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 17.19

Description

General part information

EZ-400 Series

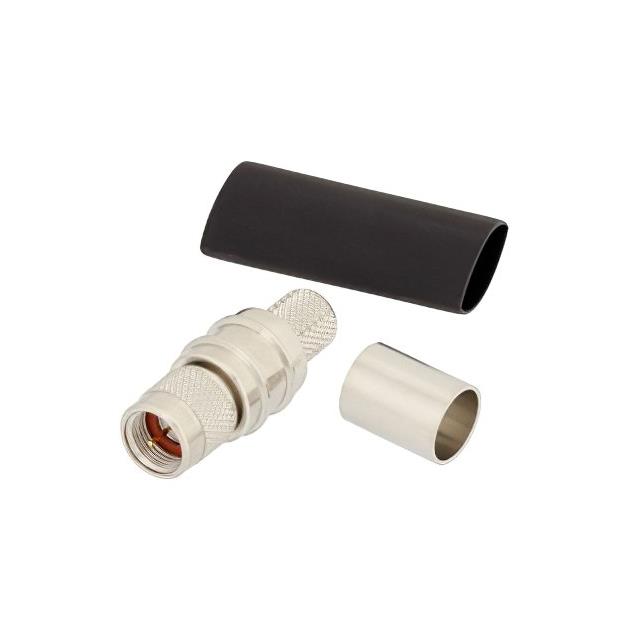

F Type Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Push On
