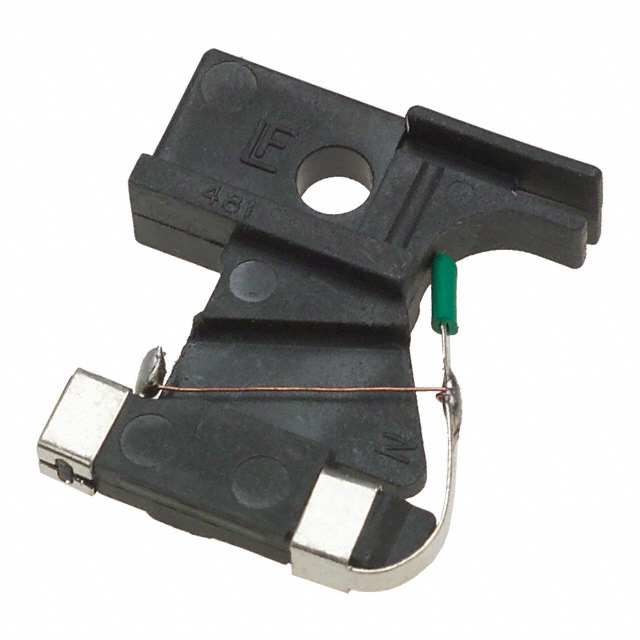

0481005.HXLP
ActiveLITTELFUSE
FUSE ALARM INDICATING 5A 125V HOLDER 17.8 X 8 X 19.6MM POLYPHENYLENE SULFIDE BULK CSA
0481005.HXLP
ActiveLITTELFUSE
FUSE ALARM INDICATING 5A 125V HOLDER 17.8 X 8 X 19.6MM POLYPHENYLENE SULFIDE BULK CSA
Description
General part information
0481005.HXLP
5A 125 VAC 125 VDC Fuse Indicating Fuse Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | 0481005.HXLP |
|---|---|
| Applications | Telecom |
| Approval Agency | CSA, UR |
| Breaking Capacity | 300 A |
| Current Rating | 5 A |
| DC Cold Resistance | 0.029 Ohms |
| Features | Indicating |
| Fuse Type | Indicating Fuse |
| Melting I²t | 26.2 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Alarm Indicator |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.772 in |
| Size / Dimension Length | 0.665 in |
| Size / Dimension Width | 0.228 in |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
