F62500047
ObsoleteDiodes Inc

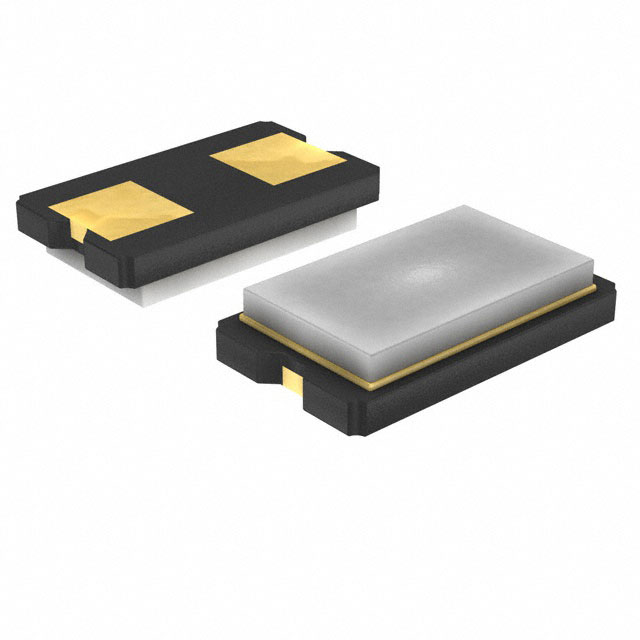

CRYSTAL, 25MHZ, 18PF, SMD, 6MM X 3.5MM
F62500047
ObsoleteDiodes Inc
CRYSTAL, 25MHZ, 18PF, SMD, 6MM X 3.5MM
Description
General part information
F62500047
25 MHz ±20ppm Crystal 18pF 50 Ohms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | F62500047 |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Frequency | 25 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.053 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Lead, 2-SMD |
| Package Length | 6 mm |
| Package Name | 2-SMD |
| Package Width | 3.5 mm |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.138 in |
| Type | MHz Crystal |
