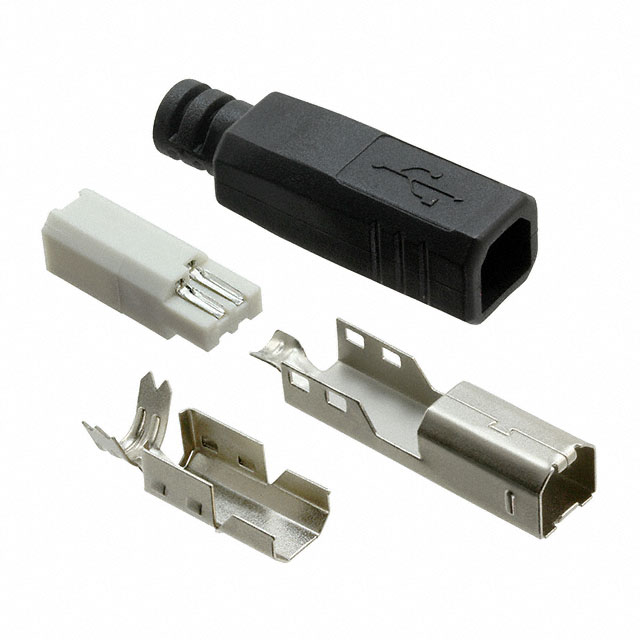

1001-002-BL-KIT

Active

CnC Tech, LLC

CONN USB 1.1 TYPE B PL 4 POS ST CABLE MOUNT 4 TERMINAL 1 PORT BAG

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN USB 1.1 TYPE B PL 4 POS ST CABLE MOUNT 4 TERMINAL 1 PORT BAG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-B (USB TYPE-B) USB 1.1 Plug Connector 4 Position Free Hanging (In-Line)

Technical documentation and resources

Specification	1001-002-BL-KIT	1001-002 Series

Connector Type	USB-B	USB-B, USB-A (USB TYPE-A)
Contact Finish	-	Gold
Current Rating (Amps)	-	1.5 A
Gender	Plug	Plug, Receptacle
Insulation Color	White	White
Material Flammability Rating	-	UL94 V-0
Mating Cycles	-	1500
Mounting Feature	-	Horizontal
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Surface Mount, Right Angle
Number of Contacts [custom]	4	4
Number of Ports	1	1
Operating Temperature	-	50 °C
Operating Temperature	-	-55 °C
Shell/Shielding Material	-	Brass
Shielding	Shielded	Shielded
Specifications	USB 1.1	USB 1.1
Termination	Solder	Solder
Voltage - Rated	-	30 V

Part	Mounting Type	Connector Type	Shielding	Number of Ports	Insulation Color	Number of Contacts [custom]	Specifications	Termination	Gender	Material Flammability Rating	Voltage - Rated	Current Rating (Amps)	Mounting Feature	Mating Cycles	Shell/Shielding Material	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]
CnC Tech, LLC 1001-002-BE-KIT	Free Hanging (In-Line)	USB-B	Shielded	1	White	4	USB 1.1	Solder	Plug
CnC Tech, LLC 1001-002-BL-KIT	Free Hanging (In-Line)	USB-B	Shielded	1	White	4	USB 1.1	Solder	Plug
CnC Tech, LLC 1001-002-01100	Surface Mount, Right Angle	USB-A (USB TYPE-A)		1		4	USB 1.1	Solder	Receptacle	UL94 V-0	30 V	1.5 A	Horizontal	1500	Brass	Gold	50 °C	-55 °C
