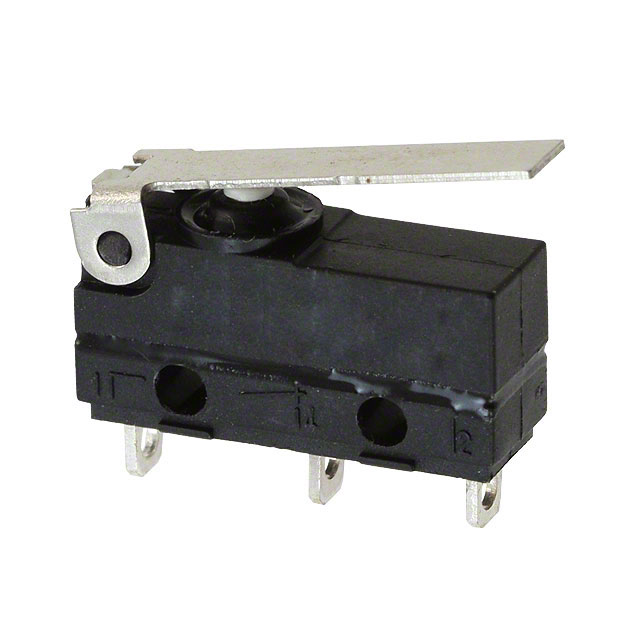

ZW10F15CD1

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACT SPDT 100MA 125V

Part	Ingress Protection	Circuit	Release Force	Switch Function	Mechanical Life	Operating Position	Operating Position	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Actuator Type	Termination Style	Voltage Rating - AC	Pretravel	Pretravel	Operating Force	Electrical Life	Current Rating (Amps)	Differential Travel	Differential Travel	Overtravel	Overtravel
Honeywell Sensing and Productivity Solutions ZW10F15CD1	IP00	SPDT	13 gf	On-Mom	1000000 Cycles	8.8 mm	0.345 in	-40 °C	120 °C	Chassis Mount	Lever, Straight	Solder Lug	125 V	0.188 in	4.8 mm	66 gf	10000 Cycles	100 mA	0.028 in	0.7 mm	0.039 in	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
