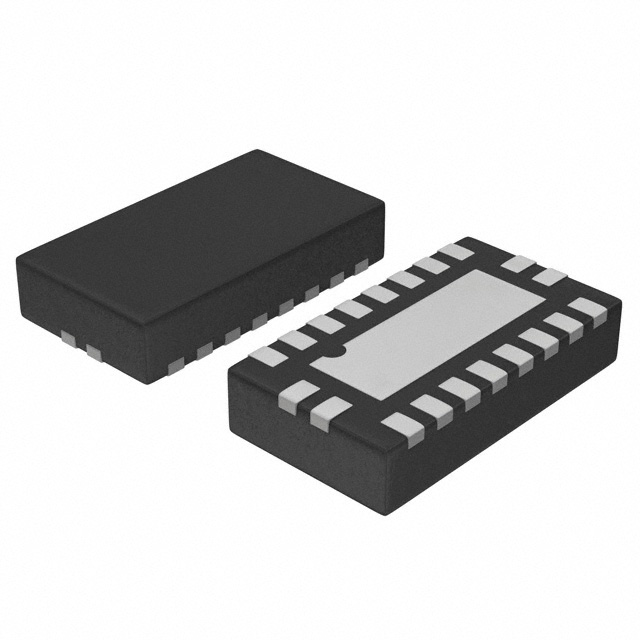

PI3USB302-AZBEX
ActiveDiodes Inc
2:1 MUX/DEMUX 3.3V USB 3.2 GEN 1 SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
PI3USB302-AZBEX
ActiveDiodes Inc
2:1 MUX/DEMUX 3.3V USB 3.2 GEN 1 SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI3USB302-AZBEX |
|---|---|
| Applications | USB |
| Features | USB 3.0, Bi-Directional |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 20-VFQFN Exposed Pad |
| Voltage - Supply, Single (V+) [Max] | 3.6 V |
| Voltage - Supply, Single (V+) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.79 | |
| 10 | $ 1.61 | |||
| 25 | $ 1.52 | |||
| 100 | $ 1.29 | |||
| 250 | $ 1.21 | |||
| 500 | $ 1.06 | |||
| 1000 | $ 0.88 | |||
| Digi-Reel® | 1 | $ 1.79 | ||
| 10 | $ 1.61 | |||
| 25 | $ 1.52 | |||
| 100 | $ 1.29 | |||
| 250 | $ 1.21 | |||
| 500 | $ 1.06 | |||
| 1000 | $ 0.88 | |||
| Tape & Reel (TR) | 3500 | $ 0.82 | ||
| 7000 | $ 0.78 | |||
| 10500 | $ 0.76 | |||
Description
General part information
PI3USB302-A Series
2:1 MUX/DeMux 3.3V USB 3.2 Gen 1 Switch
