NRPC002SAAN-RC

Active

Sullins Connector Solutions

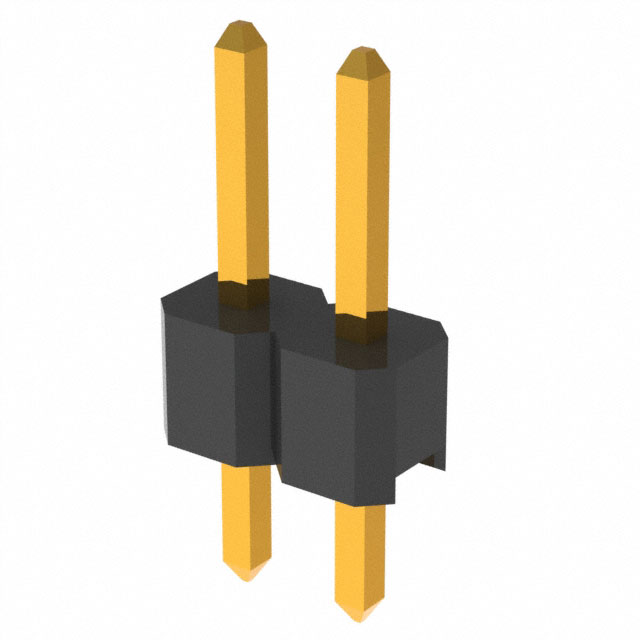

CONN HEADER VERT 2POS 2.54MM

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HEADER VERT 2POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	NRPC002SAAN-RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.448 in
Overall Contact Length	11.39 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Insulation Material	Connector Type	Contact Finish - Post	Current Rating (Amps)	Contact Finish - Mating	Number of Rows	Mounting Type	Contact Shape	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating	Contact Type	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Shrouding	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Contact Finish Thickness - Post	Number of Positions Loaded	Insulation Color	Contact Material	Style	Termination	Insulation Height [z]	Insulation Height [z]
Sullins Connector Solutions NRPC002SAAN-RC	Nylon 6T Polyamide (PA6T)	Breakaway Header	Gold	3 A	Gold	1	Through Hole	Square	2	-40 °C	105 ░C	0.23 in	5.84 mm	Male Pin	Flash	0.448 in	11.39 mm	Unshrouded	UL94 V-0	0.1 in	2.54 mm	0.12 in	3.05 mm	Push-Pull	Flash	All	Black	Brass	Board to Board Cable	Solder	0.098 in	2.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	18000	$ 0.04

General part information

Connector Header Through Hole 2 position 0.100" (2.54mm)
