Description
General part information
14-273.0252

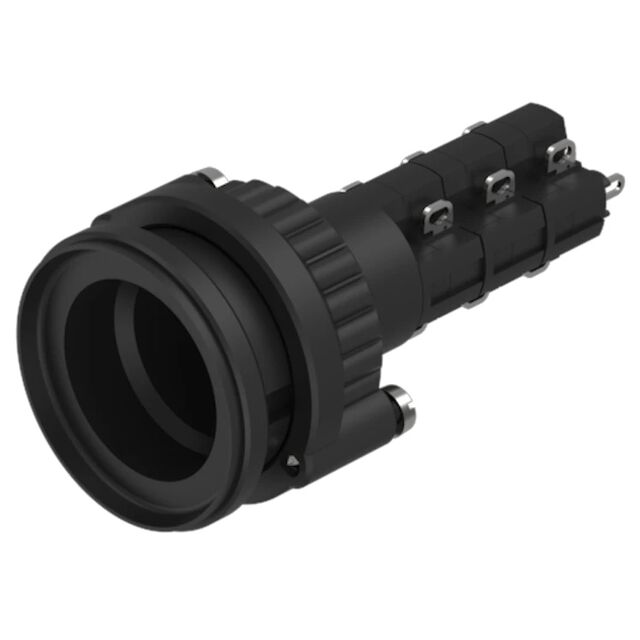

Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 14-273.0252 |
|---|---|
| Actuator Type | Button (Not Included), Round |
| Circuit | DPST-NO/NC |
| Current Rating | 5 A |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off, Off-On |
| Termination Style | Solder Lug |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 250 V |
