Description
General part information

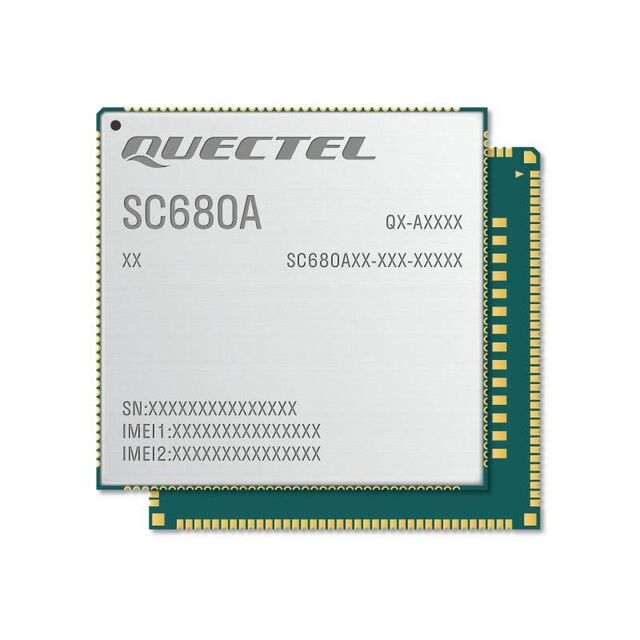

SC680AWFPA-E61-UNNNA
Bluetooth, Cellular, Navigation, WiFi 802.11a/b/g/n/ac/ax, BeiDou, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.2, Bluetooth v5.0, CDMA, EDGE, Galileo, GLONASS, GPRS, GPS, LTE Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | SC680AWFPA-E61-UNNNA |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 42 Mbps |
| Frequency | 2.4 GHz, 5 GHz |
| Frequency | 2.4GHz, 5GHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -35 °C |
| Package / Case | 324-SMD Module |
| Protocol | BeiDou, GLONASS, 802.11g, 802.11ac, GPRS, Bluetooth v4.2, CDMA, 802.11a, Galileo, Bluetooth v2.1 + EDR, 802.11n, Bluetooth v3.0, GPS, 802.11ax, 802.11b, EDGE, LTE, Bluetooth v5.0 |
| RF Family/Standard | WiFi, Bluetooth, Cellular, Navigation |
| Serial Interfaces | GPIO, I2C, SPI, USB, ADC, PWM, UART |
| Utilized IC / Part | Qualcomm® Snapdragon QCM4290 |
| Voltage - Supply (Maximum) | 4.4 V |
| Voltage - Supply (Minimum) | 3.55 V |
