13050100

Active

Bopla Enclosures

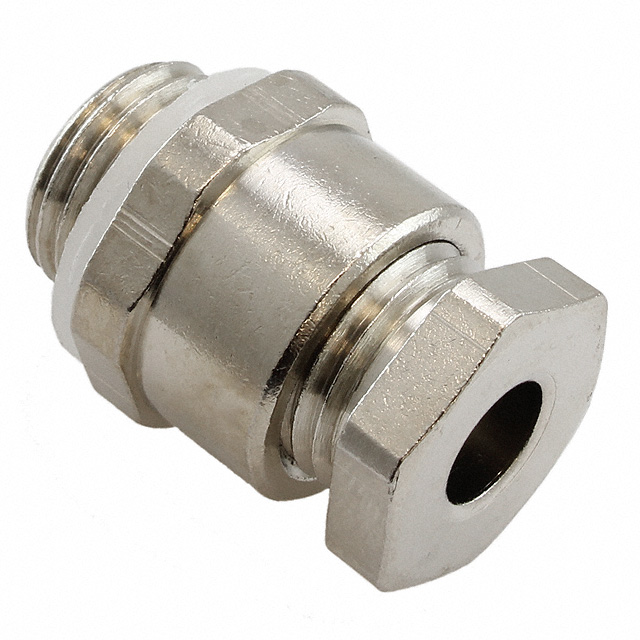

CABLE GLAND 4-6MM PG7 BRASS

Search across all available documentation for this part.

Active

Bopla Enclosures

CABLE GLAND 4-6MM PG7 BRASS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass PG7 Silver

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	13050100	13050 Series

Color	Silver	Silver
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Material	Brass	Brass
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max)	-	14 - 24 mm
Outside Cable Diameter (Max)	-	0.551 - 0.945 in
Outside Cable Diameter (Max) [Max] [diameter]	0.236 in	0.236 - 0.709 "
Outside Cable Diameter (Max) [Max] [diameter]	6 mm	6 - 18.01 mm
Outside Cable Diameter (Min)	-	6 - 18.01 mm
Outside Cable Diameter (Min)	-	0.236 - 0.709 in
Outside Cable Diameter (Min) [Min]	0.157 in	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm	4 mm
Thread Size	PG7	PG11, PG21, PG7, PG29, PG16, PG9, PG13.5
Type	Cable Gland	Cable Gland

CABLE GLAND 8-10MM PG11 BRASS

Part	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Material	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Bopla Enclosures 13050300	Silver	8 mm	0.315 in	IP65 - Dust Tight, Water Resistant	Cable Gland	0.394 "	10 mm	100 °C	-20 C	PG11	Brass
Bopla Enclosures 13050600	Silver	14 mm	0.551 in	IP65 - Dust Tight, Water Resistant	Cable Gland	0.709 in	18.01 mm	100 °C	-20 C	PG21	Brass
Bopla Enclosures 13050100	Silver			IP65 - Dust Tight, Water Resistant	Cable Gland	0.236 in	6 mm	100 °C	-20 C	PG7	Brass	0.157 in	4 mm
Bopla Enclosures 13050700	Silver	18.01 mm	0.709 in	IP65 - Dust Tight, Water Resistant	Cable Gland			100 °C	-20 C	PG29	Brass			24 mm	0.945 in
Bopla Enclosures 13050500	Silver	12 mm	0.472 in	IP65 - Dust Tight, Water Resistant	Cable Gland			100 °C	-20 C	PG16	Brass			14 mm	0.551 "
Bopla Enclosures 13050200	Silver	6 mm	0.236 in	IP65 - Dust Tight, Water Resistant	Cable Gland	0.315 in	8 mm	100 °C	-20 C	PG9	Brass
Bopla Enclosures 13050400	Silver	10 mm	0.394 in	IP65 - Dust Tight, Water Resistant	Cable Gland	0.472 in	12 mm	100 °C	-20 C	PG13.5	Brass
