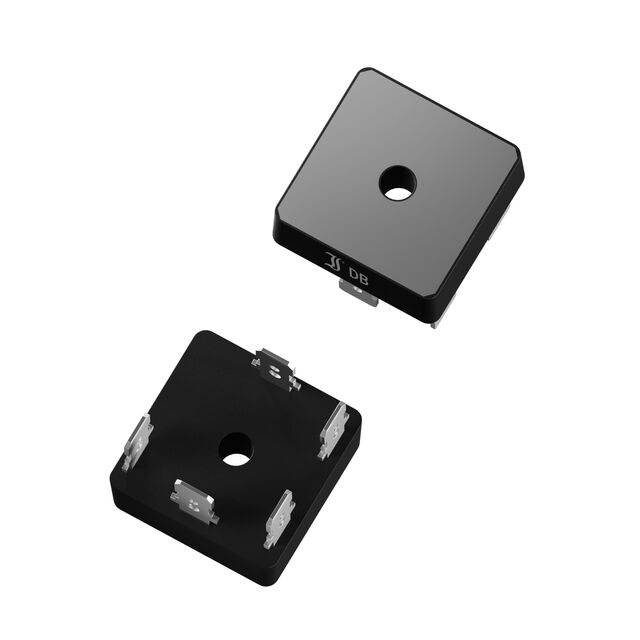

DB15-10
ActiveDiotec Semiconductor
BRIDGE RECT 3PHASE 1KV 15A DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DB15-10
ActiveDiotec Semiconductor
BRIDGE RECT 3PHASE 1KV 15A DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DB15-10 |
|---|---|
| Current - Average Rectified (Io) | 15 A |
| Current - Reverse Leakage @ Vr | 10 çA |
| Diode Type | Three Phase |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Package / Case | DB-35, 5-Square |
| Supplier Device Package | DB |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V |
| Voltage - Peak Reverse (Max) [Max] | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 177.45 | |
| 1 | $ 5.38 | |||
| 5 | $ 172.20 | |||
| 10 | $ 166.95 | |||
| 25 | $ 161.70 | |||
| 50 | $ 2.72 | |||
| 100 | $ 2.41 | |||
| 500 | $ 2.13 | |||
| 1000 | $ 2.02 | |||
Description
General part information
DB15-10
Bridge Rectifier Three Phase Standard 1 kV Chassis Mount DB
