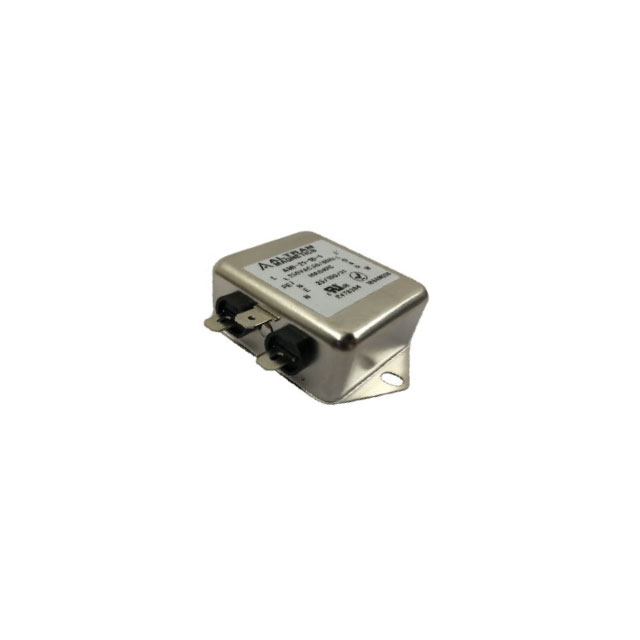

AMI-21A-6-3

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 6A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMI-21A-6-3

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 6A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AMI-21A-6-3	AMI-21A Series

Applications	Safety	Safety
Approval Agency	CE, cURus	CE, cURus
Configuration	Single Stage	Single Stage
Current	6 A	1 - 60 A
Filter Type	Single Phase	Single Phase
Frequency - Operating	400 Hz	400 Hz
Inductance	1 mH	1 - 800 µH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	Quick Connect	Quick Connect, Wire Leads, Threaded Post (M4)
Voltage - Rated AC	250 V	250 V

AMI-21A Series

LINE FILTER 250VAC 12A CHASSIS

Part	Operating Temperature [custom]	Applications	Approval Agency	Current	Voltage - Rated AC	Filter Type	Mounting Type	Frequency - Operating	Inductance	Termination Style	Configuration
Altran Magnetics, LLC AMI-21A-12-1	-25 °C, 100 °C	Safety	CE, cURus	12 A	250 V	Single Phase	Chassis Mount	400 Hz	700 µH	Quick Connect	Single Stage
Altran Magnetics, LLC AMI-21A-10-1	-25 °C, 100 °C	Safety	CE, cURus	10 A	250 V	Single Phase	Chassis Mount	400 Hz	800 µH	Quick Connect	Single Stage
Altran Magnetics, LLC AMI-21A-13-3	-25 °C, 100 °C	Safety	CE, cURus	13 A	250 V	Single Phase	Chassis Mount	400 Hz	700 µH		Single Stage
Altran Magnetics, LLC AMI-21A-3-3	-25 °C, 100 °C	Safety	CE, cURus	3 A	250 V	Single Phase	Chassis Mount	400 Hz	2.5 mH	Quick Connect	Single Stage
Altran Magnetics, LLC AMI-21A-20-6	-25 °C, 100 °C	Safety	CE, cURus	20 A	250 V	Single Phase	Chassis Mount	400 Hz	700 µH	Quick Connect	Single Stage
Altran Magnetics, LLC AMI-21A-12-3	-25 °C, 100 °C	Safety	CE, cURus	12 A	250 V	Single Phase	Chassis Mount	400 Hz	700 µH	Quick Connect	Single Stage
Altran Magnetics, LLC AMI-21A-13-1	-25 °C, 100 °C	Safety	CE, cURus	13 A	250 V	Single Phase	Chassis Mount	400 Hz	700 µH		Single Stage
Altran Magnetics, LLC AMI-21A-1-3	-25 °C, 100 °C	Safety	CE, cURus	1 A	250 V	Single Phase	Chassis Mount	400 Hz	12 mH	Quick Connect	Single Stage
Altran Magnetics, LLC AMI-21A-16-3	-25 °C, 100 °C	Safety	CE, cURus	16 A	250 V	Single Phase	Chassis Mount	400 Hz	600 µH	Quick Connect, Wire Leads	Single Stage
Altran Magnetics, LLC AMI-21A-6-3	-25 °C, 100 °C	Safety	CE, cURus	6 A	250 V	Single Phase	Chassis Mount	400 Hz	1 mH	Quick Connect	Single Stage

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	128	$ 7.31

Description

General part information

AMI-21A Series

Single Phase EMC/EMI Line Filter 6 A 250V DC ~ 400Hz Single Stage Quick Connect
