1219/10C SL001
ActiveALPHA WIRE

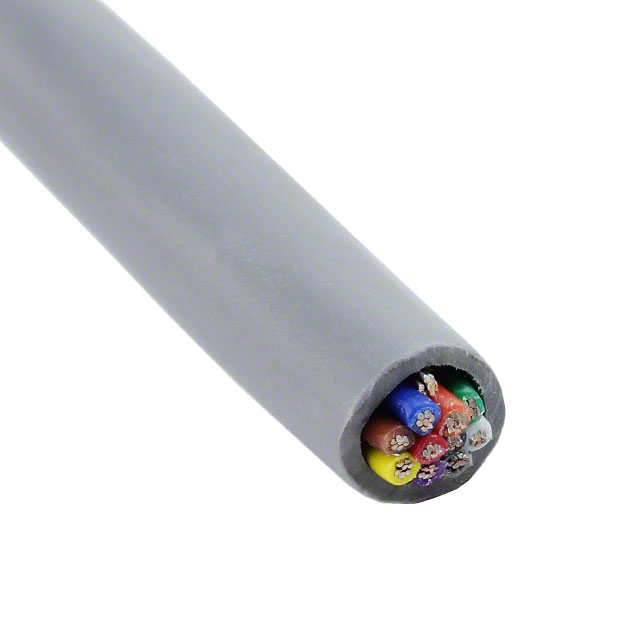

CABLE 10COND 24AWG SHLD
Deep-Dive with AI
Search across all available documentation for this part.
1219/10C SL001
ActiveALPHA WIRE
CABLE 10COND 24AWG SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1219/10C SL001 | 1219/10C Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG | 32 AWG |
| Conductor Strand [custom] | 7 | 7 |
| Features | Drain Wire | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 6.2 mm | 6.2 mm |
| Jacket (Insulation) Diameter [diameter] | 0.244 in | 0.244 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate | Slate |
| Length | 1000 ft | 1000 ft |
| Length | 304.8 m | 304.8 m |
| Length | - | 500 ' |
| Length | - | 152.4 m |
| Number of Conductors | 10 | 10 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Aluminum | Aluminum |
| Shield Type | Foil | Foil |
| Usage | Control, Communication | Control, Communication |
| Voltage | 300 V | 300 V |
| Wire Gauge | 24 AWG | 24 AWG |
1219/10C Series
CABLE 10COND 24AWG SHLD
| Part | Usage | Conductor Material | Wire Gauge | Jacket Color | Voltage | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Features | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Material | Conductor Insulation | Cable Type | Shield Coverage | Jacket (Insulation) Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 1219/10C SL001 | Communication, Control | Copper, Tinned | 24 AWG | Slate | 300 V | Foil | -20 C | 80 C | 1000 ft | 304.8 m | Drain Wire | 10 | 32 AWG | 7 | 6.2 mm | 0.244 in | Aluminum | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 100 % | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE 1219/10C SL002 | Communication, Control | Copper, Tinned | 24 AWG | Slate | 300 V | Foil | -20 C | 80 C | Drain Wire | 10 | 32 AWG | 7 | 6.2 mm | 0.244 in | Aluminum | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 100 % | Poly-Vinyl Chloride (PVC) | 500 ' | 152.4 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 1.19 | |
Description
General part information
1219/10C Series
10 Conductor Multi-Conductor Cable Slate 24 AWG Foil 1000.0' (304.8m)
