Technical Specifications
Parameters and characteristics for this part
| Specification | 7301J3V7GE2 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Standard V) |
| Approval Agency | cULus |
| Circuit | 3PDT |
| Color - Actuator/Cap | Black |
| Current Rating | 5 A |
| Electrical Life (Cycles) | 100000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Panel Cutout Length | 27.81 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 16.46 mm |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
CAD
3D models and CAD resources for this part
Description
General part information
70000 Series Series

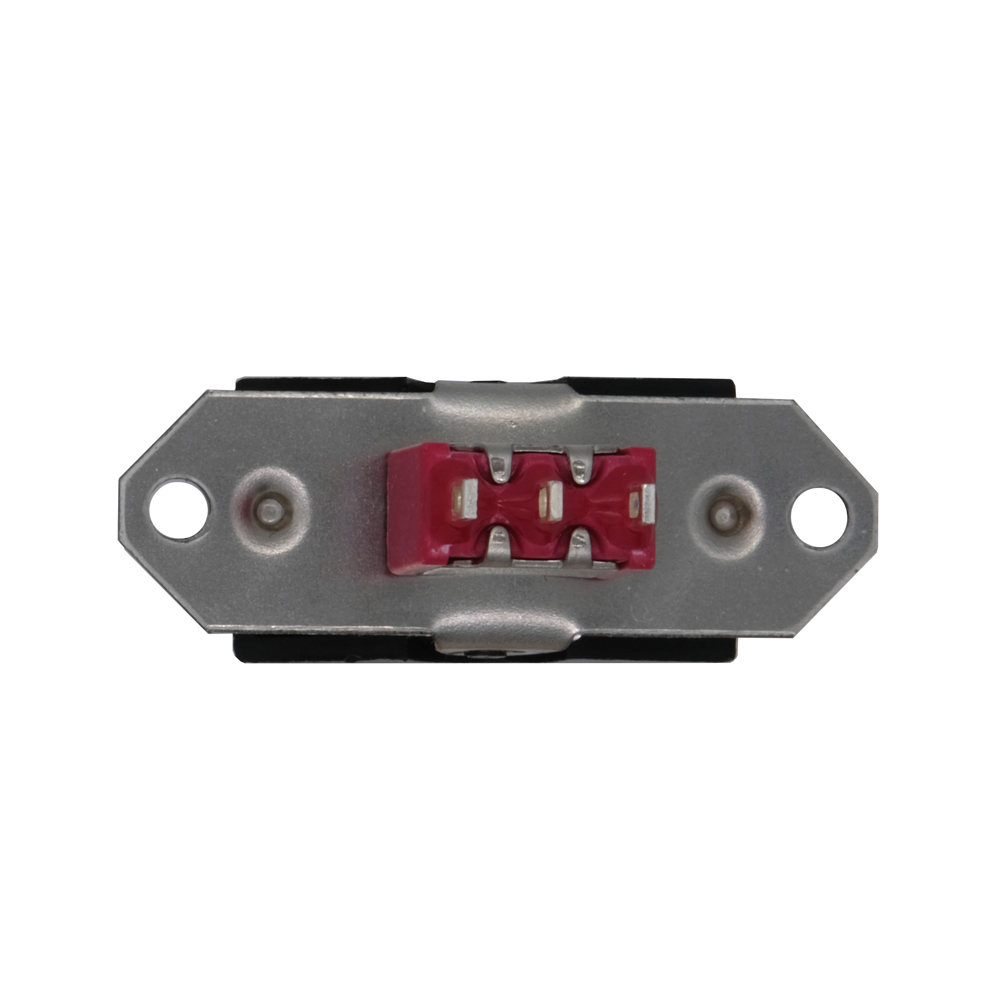

The 7000 series miniature rocker and lever handle switches from C&K are multi-pole and multi-position, have a wide variety of actuator and termination options available and use epoxy terminal-seal that’s compatible with bottom wash cleaning. Product designers in the telecommunications, instrumentation and medical equipment industries turn to C&K’s 7000 series switches because of their reputation for quality and performance even in the face of harsh environments.
