101TL2-3

Active

Honeywell Sensing and Productivity Solutions

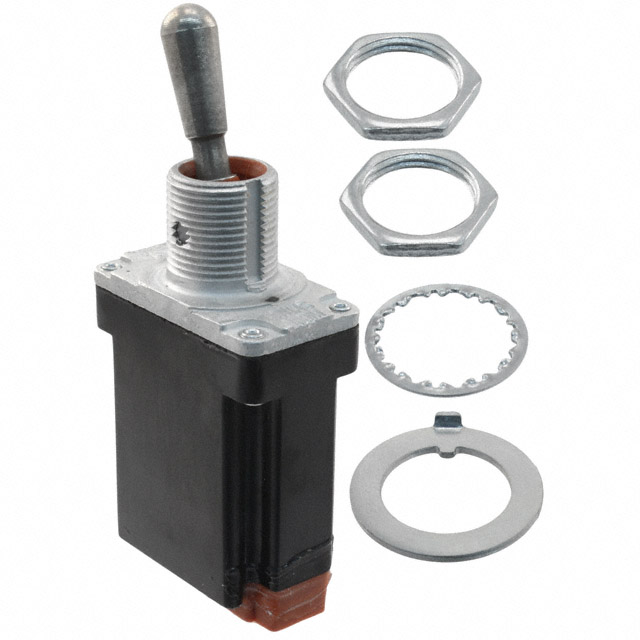

SWITCH TOGGLE SPDT 7.5A 115V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsToggle Switch Line Guide Datasheet

101TL2-3

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 7.5A 115V

Deep-Dive with AI

DocumentsToggle Switch Line Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.05
		10	$ 45.13

Description

General part information

101TL2 Series

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

Toggle Switch Line Guide

Datasheet

Specification	101TL2-3	101TL2 Series

Actuator Length [x]	17.27 mm	16.51 - 26.67 mm
Actuator Material	Nickel Plated	Nickel Plated
Actuator Type	Standard Round	Standard Round, Locking Lever, Flatted
Bushing Thread	15/32-32	15/32-32
Circuit	SPDT	SPDT, SPST-NO, SPST-NC, SPST
Current Rating (Amps)	7.5 A	7.5 - 100 mA
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	Environment Sealed	Environment Sealed
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm	12.4 mm
Switch Function	On-On	On-Off-Mom, Off-Mom, On-On, On-Mom, Mom-Off-Mom, On-Off
Termination Style	IWTS	IWTS
Voltage Rating - AC	115 V	115 V
Voltage Rating - DC	30 V	28 - 30 V

Part	Circuit	Illumination	Switch Function	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Voltage Rating - AC	Voltage Rating - DC	Actuator Material	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Ingress Protection
Honeywell Sensing and Productivity Solutions 101TL2834-5	SPDT	Non-Illuminated	On-Off-Mom	17.27 mm	71 °C	-65 ░C	15/32-32	115 V	28 V	Nickel Plated	100 mA	12.4 mm	Standard Round	IWTS	Environment Sealed
Honeywell Sensing and Productivity Solutions 101TL2-5N	SPDT	Non-Illuminated	On-Off-Mom	26.67 mm	71 °C	-65 ░C	15/32-32	115 V	30 V		7.5 A	12.4 mm	Locking Lever	IWTS	Environment Sealed
Honeywell Sensing and Productivity Solutions 101TL2834-6	SPST-NO	Non-Illuminated	Off-Mom	17.27 mm	71 °C	-65 ░C	15/32-32	115 V	28 V	Nickel Plated	100 mA	12.4 mm	Standard Round	IWTS	Environment Sealed
Honeywell Sensing and Productivity Solutions 101TL2-3D	SPDT	Non-Illuminated	On-On	26.67 mm	71 °C	-65 ░C	15/32-32	115 V	30 V	Nickel Plated	7.5 A	12.4 mm	Locking Lever	IWTS	Environment Sealed
Honeywell Sensing and Productivity Solutions 101TL2-4	SPST-NC	Non-Illuminated	On-Mom	17.27 mm	71 °C	-65 ░C	15/32-32	115 V	30 V	Nickel Plated	7.5 A	12.4 mm	Standard Round	IWTS	Environment Sealed
Honeywell Sensing and Productivity Solutions 101TL2834-3	SPDT	Non-Illuminated	On-On	17.27 mm	71 °C	-65 ░C	15/32-32	115 V	28 V	Nickel Plated	100 mA	12.4 mm	Standard Round	IWTS	Environment Sealed
Honeywell Sensing and Productivity Solutions 101TL2-7	SPDT	Non-Illuminated	Mom-Off-Mom	17.27 mm	71 °C	-65 ░C	15/32-32	115 V	30 V	Nickel Plated	7.5 A	12.4 mm	Standard Round	IWTS	Environment Sealed
Honeywell Sensing and Productivity Solutions 101TL2-3G	SPDT	Non-Illuminated	On-On	26.67 mm	71 °C	-65 ░C	15/32-32	115 V	30 V	Nickel Plated	7.5 A	12.4 mm	Locking Lever	IWTS	Environment Sealed
Honeywell Sensing and Productivity Solutions 101TL2-8	SPDT	Non-Illuminated	On-Mom	17.27 mm	71 °C	-65 ░C	15/32-32	115 V	30 V	Nickel Plated	7.5 A	12.4 mm	Standard Round	IWTS	Environment Sealed
Honeywell Sensing and Productivity Solutions 101TL2887-3	SPDT	Non-Illuminated	On-On	17.27 mm	71 °C	-65 ░C	15/32-32	115 V	28 V	Nickel Plated	100 mA	12.4 mm	Standard Round	IWTS	Environment Sealed
