EGG.1K.303.CLL

Active

LEMO

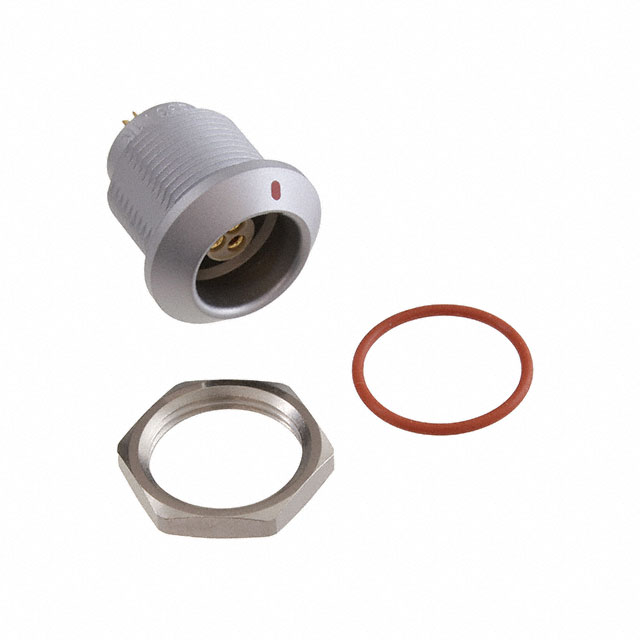

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGG.1K.303.CLL

Active

LEMO

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.10
		10	$ 35.11
		25	$ 33.60
		50	$ 32.51
		100	$ 31.43
		250	$ 29.69

Description

General part information

EGG.1K Series

Circular Push Pull Connectors STRAIGHT PLUG MALE W. CABLE COLLET

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGG.1K.303.CLL	EGG.1K Series

Color	Silver	Silver, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	12 A	1.5 - 12 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	-	4 - 14
Number of Positions	-	16
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	303	303 - 731
Shielding	Shielded	Shielded
Termination	-	Solder, Crimp

EGG.1K Series

Circular Push Pull Connectors STRAIGHT PLUG MALE W. CABLE COLLET

Part	Connector Type	Material Flammability Rating	Color	Current Rating (Amps)	Ingress Protection	Orientation	Contact Material	Shell Size - Insert	Shielding	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Fastening Type	Mounting Feature	Shell Finish	Insert Material	Mounting Type	Termination	Number of Positions	Number of Positions
LEMO EGG.1K.303.CLL	Receptacle, Female Sockets	UL94 V-0	Silver	12 A	IP66/IP68	G	Bronze	303	Shielded	Gold	-55 °C	200 °C	Metal	59 Áin	1.5 Ám	Brass	Push-Pull	Bulkhead - Rear Side Nut	Chrome	Polyetheretherketone (PEEK)
LEMO EGG.1K.304.CLN	Receptacle, Female Sockets	UL94 V-0	Silver	10 A	IP66/IP68	G	Bronze	304	Shielded	Gold	-55 °C	200 °C	Metal	59 Áin	1.5 Ám	Brass	Push-Pull	Bulkhead - Rear Side Nut	Chrome	Polyetheretherketone (PEEK)	Panel Mount, Through Hole	Solder	4
LEMO EGG.1K.305.CLL	Receptacle, Female Sockets	UL94 V-0	Silver	9 A	IP66/IP68	G	Bronze	305	Shielded	Gold	-55 °C	200 °C	Metal	59 Áin	1.5 Ám	Brass	Push-Pull	Bulkhead - Rear Side Nut	Chrome	Polyetheretherketone (PEEK)
LEMO EGG.1K.308.KYM	Receptacle, Female Sockets	UL94 V-0	Black	5 A	IP66/IP68	G	Bronze	308	Shielded	Gold	-55 °C	200 °C	Metal	59 Áin	1.5 Ám	Brass	Push-Pull	Bulkhead - Rear Side Nut		Polyetheretherketone (PEEK)		Crimp	8
LEMO EGG.1K.307.CYM	Receptacle, Female Sockets	UL94 V-0	Silver	7 A	IP66/IP68	G	Bronze	307	Shielded	Gold	-55 °C	200 °C	Metal	59 Áin	1.5 Ám	Brass	Push-Pull	Bulkhead - Rear Side Nut	Chrome	Polyetheretherketone (PEEK)		Crimp	7
LEMO EGG.1K.305.CYM	Receptacle, Female Sockets	UL94 V-0	Silver	9 A	IP66/IP68	G	Bronze	305	Shielded	Gold	-55 °C	200 °C	Metal	59 Áin	1.5 Ám	Brass	Push-Pull	Bulkhead - Rear Side Nut	Chrome	Polyetheretherketone (PEEK)		Crimp
LEMO EGG.1K.316.CLL	Receptacle, Female Sockets	UL94 V-0	Silver	1.5 A	IP66/IP68	G	Bronze	316	Shielded	Gold	-55 °C	200 °C	Metal	59 Áin	1.5 Ám	Brass	Push-Pull	Bulkhead - Rear Side Nut	Chrome	Polyetheretherketone (PEEK)				16
LEMO EGG.1K.304.CYM	Receptacle, Female Sockets	UL94 V-0	Silver	10 A	IP66/IP68	G	Bronze	304	Shielded	Gold	-55 °C	200 °C	Metal	59 Áin	1.5 Ám	Brass	Push-Pull	Bulkhead - Rear Side Nut	Chrome	Polyetheretherketone (PEEK)		Crimp	4
LEMO EGG.1K.314.CLL	Receptacle, Female Sockets	UL94 V-0	Silver	2 A	IP66/IP68	G	Bronze	314	Shielded	Gold	-55 °C	200 °C	Metal	59 Áin	1.5 Ám	Brass	Push-Pull	Bulkhead - Rear Side Nut	Chrome	Polyetheretherketone (PEEK)			14
LEMO EGG.1K.307.CLL	Receptacle, Female Sockets	UL94 V-0	Silver	7 A	IP66/IP68	G	Bronze	307	Shielded	Gold	-55 °C	200 °C	Metal	59 Áin	1.5 Ám	Brass	Push-Pull	Bulkhead - Rear Side Nut	Chrome	Polyetheretherketone (PEEK)			7
