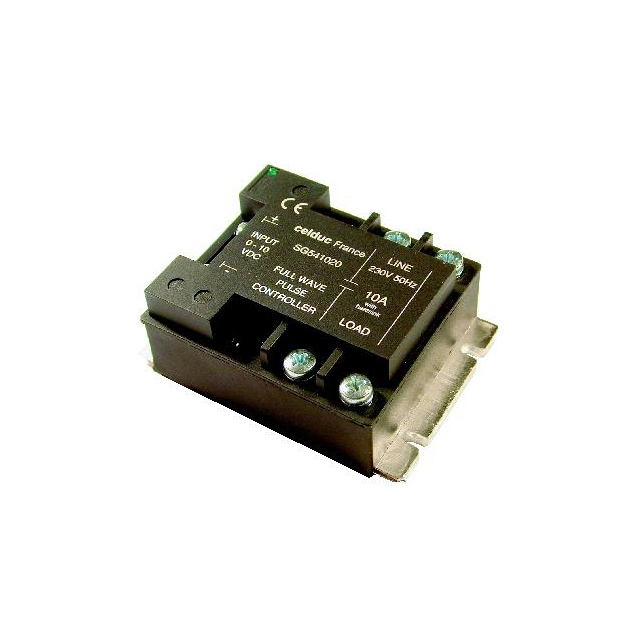

SG541420
ActiveCelduc Inc.
SSR RELAY SPST-NO 12A 115-253V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SG541420
ActiveCelduc Inc.
SSR RELAY SPST-NO 12A 115-253V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SG541420 |
|---|---|
| Load Current | 12 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | AC |
| Package / Case | Module |
| Voltage - Input [Max] | 20 mA |
| Voltage - Input [Min] | 4 mA |
| Voltage - Load [Max] | 253 V |
| Voltage - Load [Min] | 115 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 16 | $ 298.49 | |
Description
General part information
SG5414 Series
Solid State SPST-NO (1 Form A) Module
