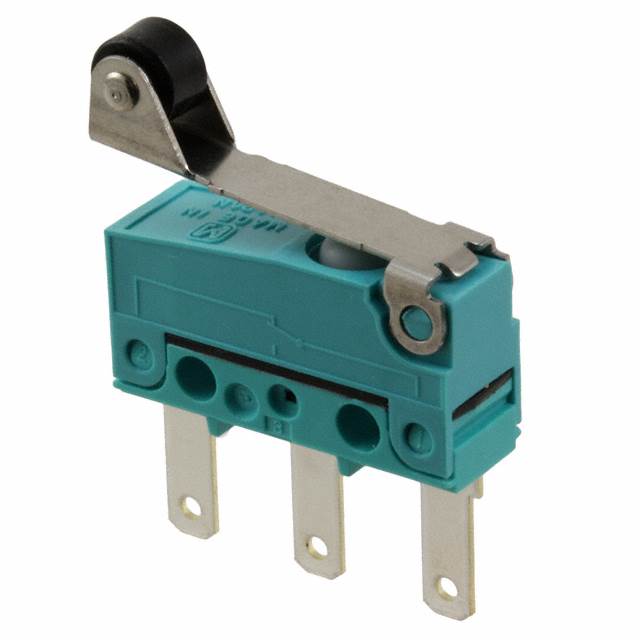

ABS1116549

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 0.1A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

ABS1116549

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 0.1A 30V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABS1116549	ABS111 Series

Actuator Type	Roller, Lever	Round (Pin Plunger), Roller, Lever, Lever, Straight, Simulated Roller
Circuit	SPDT	SPDT
Current Rating (Amps)	100 mA	2 - 100 mA
Differential Travel	0.5 mm	0.1 - 1 mm
Differential Travel	0.02 in	0.004 - 0.04 in
Electrical Life	200000 Cycles	50000 - 200000 Cycles
Ingress Protection	IP50	IP50
Mechanical Life	5000000 Cycles	5000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	60 gf	35 - 150 gf
Operating Position	-	8.4 - 11.7 mm
Operating Position	-	0.33 - 0.46 in
Operating Position [custom]	0.571 in	0.571 in
Operating Position [custom]	14.5 mm	14.5 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.032 in	0.015 - 0.062 "
Overtravel	0.81 mm	0.4 - 1.6 mm
Pretravel	0.1 in	0.024 - 0.138 in
Pretravel	2.5 mm	0.6 - 3.5 mm
Release Force	4.079 gf	2.5 - 20 gf
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	-	125 V
Voltage Rating - DC	30 V	30 V

ABS111 Series

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Voltage Rating - AC	Differential Travel	Differential Travel	Mounting Type	Operating Position	Operating Position	Actuator Type	Release Force	Pretravel	Pretravel	Electrical Life	Voltage Rating - DC	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Circuit	Switch Function	Operating Force	Mechanical Life	Ingress Protection	Overtravel	Overtravel	Operating Position [custom]	Operating Position [custom]
Panasonic Electric Works ABS1110519	125 V	0.1 mm	0.004 in	Chassis Mount	8.4 mm	0.33 in	Round (Pin Plunger)	20 gf	0.024 in	0.6 mm	200000 Cycles	30 V	100 mA	85 °C	-40 °C	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	150 gf	5000000 Cycles	IP50	0.4 mm	0.015 "
Panasonic Electric Works ABS111641	125 V	0.5 mm	0.02 in	Chassis Mount			Lever, Roller	3.5 gf	0.1 in	2.5 mm	200000 Cycles	30 V	100 mA	85 °C	-40 °C	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	40 gf	5000000 Cycles	IP50	0.81 mm	0.032 in	0.571 in	14.5 mm
Panasonic Electric Works ABS1116549		0.5 mm	0.02 in	Chassis Mount			Lever, Roller	4.079 gf	0.1 in	2.5 mm	200000 Cycles	30 V	100 mA	85 °C	-40 °C	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	60 gf	5000000 Cycles	IP50	0.81 mm	0.032 in	0.571 in	14.5 mm
Panasonic Electric Works ABS1113409	125 V	1 mm	0.04 in	Chassis Mount	8.8 mm	0.345 in	Lever, Straight	2.5 gf	0.138 in	3.5 mm	50000 Cycles	30 V	2 A	85 °C	-40 °C	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom		5000000 Cycles	IP50	1.6 mm	0.062 in
Panasonic Electric Works ABS1112509	125 V	0.8 mm	0.031 "	Chassis Mount	8.8 mm	0.345 in	Lever, Straight	3.5 gf	0.11 in	2.8 mm	50000 Cycles	30 V	2 A	85 °C	-40 °C	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	55 gf	5000000 Cycles	IP50	1.2 mm	0.047 "
Panasonic Electric Works ABS1112519	125 V	0.8 mm	0.031 "	Chassis Mount	8.8 mm	0.345 in	Lever, Straight	3.5 gf	0.11 in	2.8 mm	200000 Cycles	30 V	100 mA	85 °C	-40 °C	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	55 gf	5000000 Cycles	IP50	1.2 mm	0.047 "
Panasonic Electric Works ABS1114449		0.8 mm	0.031 "	Chassis Mount	11.7 mm	0.46 in	Lever, Simulated Roller	3.059 gf	0.11 in	2.8 mm	200000 Cycles	30 V	100 mA	85 °C	-40 °C	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	35 gf	5000000 Cycles	IP50	1.2 mm	0.047 "
Panasonic Electric Works ABS1114509	125 V	0.8 mm	0.031 "	Chassis Mount	11.7 mm	0.46 in	Lever, Simulated Roller	3.5 gf	0.11 in	2.8 mm	50000 Cycles	30 V	2 A	85 °C	-40 °C	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	55 gf	5000000 Cycles	IP50	1.2 mm	0.047 "
Panasonic Electric Works ABS1110409	125 V	0.1 mm	0.004 in	Chassis Mount	8.4 mm	0.33 in	Round (Pin Plunger)	15 gf	0.024 in	0.6 mm	50000 Cycles	30 V	2 A	85 °C	-40 °C	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	100 gf	5000000 Cycles	IP50	0.4 mm	0.015 "
Panasonic Electric Works ABS1110509	125 V	0.1 mm	0.004 in	Chassis Mount	8.4 mm	0.33 in	Round (Pin Plunger)	20 gf	0.024 in	0.6 mm	50000 Cycles	30 V	2 A	85 °C	-40 °C	Quick Connect - 0.110" (2.8mm)	SPDT	On-Mom	150 gf	5000000 Cycles	IP50	0.4 mm	0.015 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.85
		10	$ 3.56
		25	$ 3.33
		50	$ 3.26
		100	$ 2.59
		300	$ 2.44
		500	$ 2.30
		1000	$ 2.15

Description

General part information

ABS111 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources
