1191068F07012(R)

Active

GlobTek, Inc.

CORD 18AWG 5-15P TO C13 8.04'

Search across all available documentation for this part.

Active

GlobTek, Inc.

CORD 18AWG 5-15P TO C13 8.04'

Technical Specifications

Parameters and characteristics commom to parts in this series

CORD 18AWG 5-15P - 320-C13 8.04'

Part	Number of Conductors	Color	Length	Length	Cord Type	Style	Wire Gauge	Operating Temperature	Approval Agency Marking	Approved Countries	1st Connector	Voltage Rating	Features	Shielding	Current Rating (Amps)	2nd Connector
GlobTek, Inc. 1191068F0701(R)	3	Black	2.45 m	8.04 ft	SJT	Female Sockets, Male Pins	18 AWG	105 C	CSA, UL	Canada, United States	NEMA 5-15P	125 VAC	Hospital Grade	Unshielded	10 A
GlobTek, Inc. 1191068F0712-L(R)	3	Black	2.45 m	8.04 ft	SJT	Female Sockets, Male Pins	18 AWG	60 °C	CSA, cULus, UL	Canada, United States	NEMA 5-15P	125 VAC	Hospital Grade	Unshielded	7 A	IEC 320-C5
GlobTek, Inc. 1191068F07012(R)	3	Black	2.45 m	8.04 ft	SJT	Female Sockets, Male Pins	18 AWG	60 °C	CSA, UL	Canada, United States	NEMA 5-15P	125 VAC	Hospital Grade	Unshielded	10 A	IEC 320-C13, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

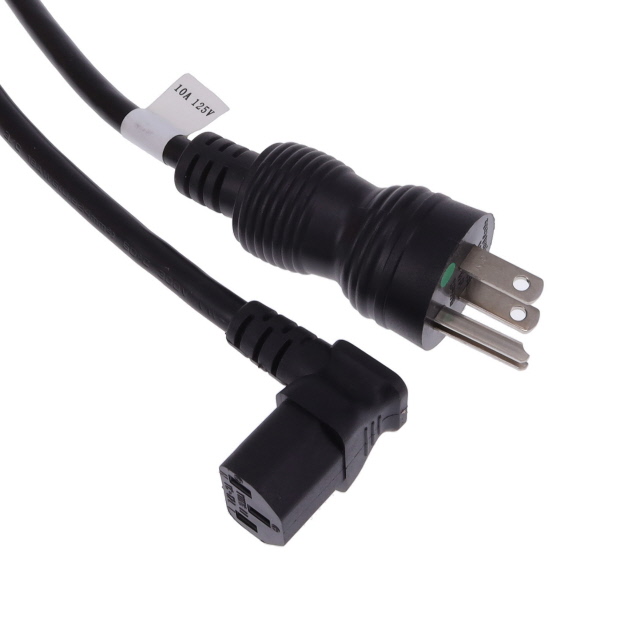

8.04' (2.45m) Power Cord Black NEMA 5-15P To IEC 320-C13, Right Angle SJT
