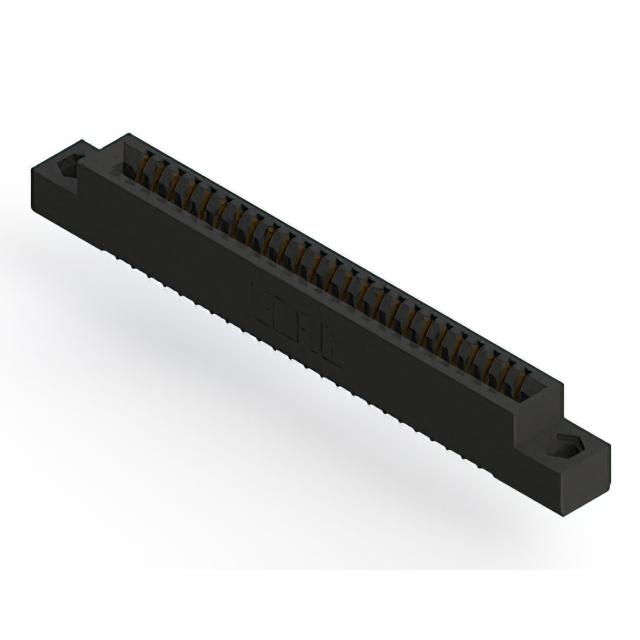

391-025-524-104

Active

EDAC Inc.

CONN EDGE SINGLE FML 25POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

391-025-524-104

Active

EDAC Inc.

CONN EDGE SINGLE FML 25POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	391-025-524-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions/Bay/Row [custom]	25
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

391-025 Series

Part	Material - Insulation	Contact Material	Contact Finish	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Type	Pitch [x]	Pitch [x]	Termination	Number of Rows	Number of Positions/Bay/Row [custom]	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Read Out	Contact Finish Thickness	Contact Finish Thickness	Gender	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type
EDAC Inc. 391-025-521-104	Polyester Thermoplastic	Copper Alloy	Gold	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Non Specified - Single Edge	2.54 mm	0.1 in	Solder	1	25	Semi Bellows	-40 °C	105 ░C	1	Single	10 Áin	0.25 Ám	Female	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 391-025-522-107	Polyester Thermoplastic	Copper Alloy	Gold		Flush Mount M3 Threaded Insert Top Opening		Non Specified - Single Edge	2.54 mm	0.1 in	Solder	1	25	Semi Bellows	-40 °C	105 ░C	1	Single	10 Áin	0.25 Ám	Female	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 391-025-524-101	Polyester Thermoplastic	Copper Alloy	Gold				Non Specified - Single Edge	2.54 mm	0.1 in	Solder	1	25	Semi Bellows	-40 °C	105 ░C	1	Single	10 Áin	0.25 Ám	Female	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 391-025-520-104	Polyester Thermoplastic	Copper Alloy	Gold	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Non Specified - Single Edge	2.54 mm	0.1 in	Solder	1	25	Semi Bellows	-40 °C	105 ░C	1	Single	10 Áin	0.25 Ám	Female	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 391-025-520-108	Polyester Thermoplastic	Copper Alloy	Gold		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Single Edge	2.54 mm	0.1 in	Solder	1	25	Semi Bellows	-40 °C	105 ░C	1	Single	10 Áin	0.25 Ám	Female	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 391-025-522-104	Polyester Thermoplastic	Copper Alloy	Gold	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Non Specified - Single Edge	2.54 mm	0.1 in	Solder	1	25	Semi Bellows	-40 °C	105 ░C	1	Single	10 Áin	0.25 Ám	Female	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 391-025-524-103	Polyester Thermoplastic	Copper Alloy	Gold	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Non Specified - Single Edge	2.54 mm	0.1 in	Solder	1	25	Semi Bellows	-40 °C	105 ░C	1	Single	10 Áin	0.25 Ám	Female	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 391-025-524-102	Polyester Thermoplastic	Copper Alloy	Gold	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Non Specified - Single Edge	2.54 mm	0.1 in	Solder	1	25	Semi Bellows	-40 °C	105 ░C	1	Single	10 Áin	0.25 Ám	Female	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 391-025-524-104	Polyester Thermoplastic	Copper Alloy	Gold	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Non Specified - Single Edge	2.54 mm	0.1 in	Solder	1	25	Semi Bellows	-40 °C	105 ░C	1	Single	10 Áin	0.25 Ám	Female	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 391-025-521-107	Polyester Thermoplastic	Copper Alloy	Gold		Flush Mount M3 Threaded Insert Top Opening		Non Specified - Single Edge	2.54 mm	0.1 in	Solder	1	25	Semi Bellows	-40 °C	105 ░C	1	Single	10 Áin	0.25 Ám	Female	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 10.52
Newark	Each	1	$ 12.34
		100	$ 10.01
		250	$ 8.83
		500	$ 8.34
		1000	$ 7.21

Description

General part information

391-025 Series

25 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
