PE45931
ActivePasternack

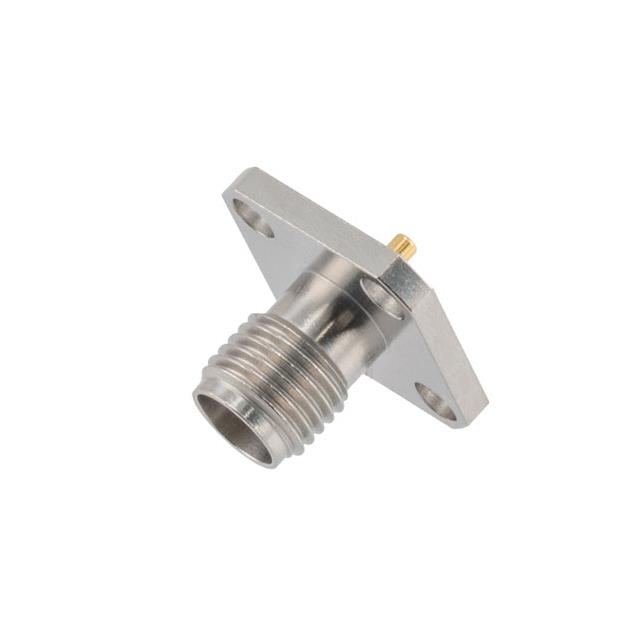

2.92MM FEMALE 4 HOLE SQ 0.5 INCH
PE45931
ActivePasternack
2.92MM FEMALE 4 HOLE SQ 0.5 INCH
Description
General part information
PE45931
2.92mm Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45931 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Plug Diameter | 2.92 mm |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded |
| Frequency - Max | 40 Gbps |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Insertion Loss | 0.25 dB |
| Mating Cycles | 500 cycles |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 250 V |
