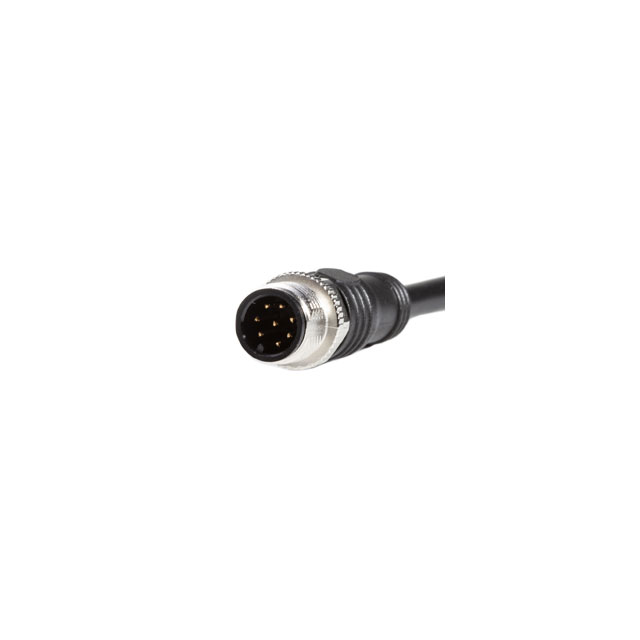

| 1st Connector Gender | Male Pins | Female Sockets, Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 8 positions | 4 - 8 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M12 | M8, M5, M12 |
| 1st Connector Type | Receptacle | Plug, Right Angle, Receptacle, Plug |
| 2nd Connector Gender | - | Female Sockets |
| 2nd Connector Mounting Type | - | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | - | 4 |
| 2nd Connector Number of Positions Loaded | - | All |
| 2nd Connector Shell Size - Insert | - | M12 |
| 2nd Connector Type | Wire Leads | Wire Leads, Plug |
| Accessory Type | - | Cap (Cover), Protective |
| Applications | - | Industrial |
| Assembly Configuration | Standard | Standard |
| Backshell Material, Plating | - | Nylon, Polyamide (PA), Glass Filled |
| Cable Material | Polyvinyl Chloride (PVC) | Polyurethane (PUR), Polyvinyl Chloride (PVC) |
| Cable Opening | - | 8 mm |
| Cable Opening | - | 6 mm |
| Cable Opening | - | 0.315 in |
| Cable Opening | - | 0.236 in |
| Cable Opening | - | 0.157 - 0.217 in |
| Cable Opening | - | 4 - 5.5 mm |
| Cable Type | Round | Round Cable, Round |
| Color | Black | Black, Silver |
| Connector Type | - | Plug to Plug, Receptacle, Male Pins, Jack to Cable, Female Sockets, Plug, Receptacle, Female Sockets, Jack to Plug, Jack |
| Contact Finish | - | Gold |
| Contact Finish - Mating | - | Gold |
| Contact Material | - | Brass, Copper Alloy |
| Current Rating (Amps) | - | 1 - 4 A |
| Features | - | Internal Threads, Contains Strap, Dust Tight, Waterproof, Molded Plugs, Circular Threaded Coupling, Coupling Nut, Backshell, Circular Bayonet Coupling |
| For Use With/Related Products | - | M12 Male Connector |
| Housing Material | - | Polyamide (PA), Nylon, Glass Filled |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof, IP68 - Dust Tight, Waterproof |
| Insert Material | - | Thermoplastic Polyurethane (TPU), Polyamide (PA), Nylon, Glass Filled |
| LED Color | - | Does Not Contain LED |
| Length | - | 4.92 ' |
| Length | - | 1.5 m |
| Length [x] | 9.84 ft | 1.64 - 9.84 ft |
| Length [x] | 3 m | 1 - 500 m |
| Material | - | Glass Filled, Polyamide (PA), Nylon |
| Mounting Feature | - | Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut, Front Side Nut |
| Mounting Type | - | Bulkhead, Panel Mount, Free Hanging (In-Line), Right Angle, Through Hole |
| Number of Ports | - | 1 |
| Number of Positions | - | 4 - 8 |
| Number of Positions/Contacts | - | 8p8c (RJ45, Ethernet) |
| Number of Rows | - | 1 |
| Operating Temperature | - | 90 - 105 °C |
| Operating Temperature | - | -40 - -25 °C |
| Orientation | - | A, Straight |
| Primary Material | - | Metal |
| Ratings | - | Cat5e, Cat6a |
| Shell Finish | - | Nickel, Anodized |
| Shell Material | - | Brass, Aluminum Alloy |
| Shell Size - Insert | - | M8, M12-8, M12-5, M12-4, M8-4, M8-3, M12 |
| Shielding | Unshielded | Unshielded, Shielded |
| Style | - | Cat5e, Industrial Environments - IP67, Industrial Environments - IP68 |
| Tab Direction | - | User Selectable |
| Termination | - | Screw, Wire Leads, Solder, IDC |
| Usage | Industrial Environments | Industrial Environments |
| Voltage Rating | - | 30 - 250 VAC |
