Connectors, Interconnects

926657-6

Active

TE Connectivity Raychem Cable Protection

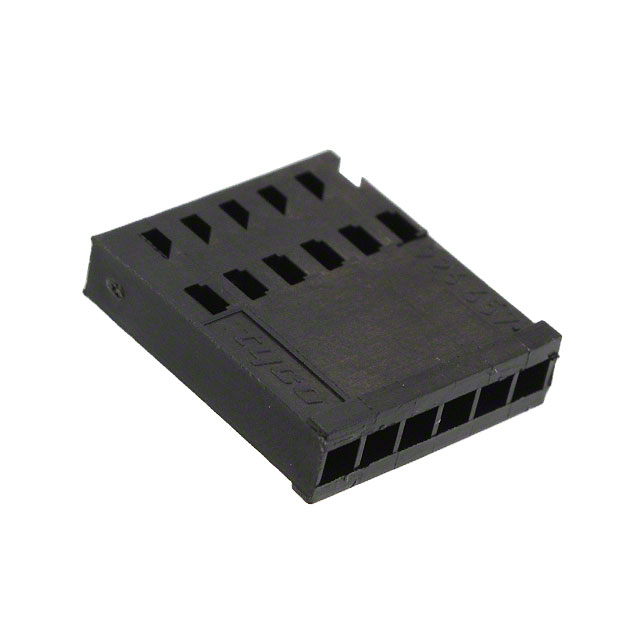

CONN RCPT HSG 6POS 2.54MM

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 6POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	926657-6

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Insulation Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch [x]	Pitch [x]	Note	Number of Positions	Number of Rows	Contact Termination	Color	Connector Type
TE Connectivity Raychem Cable Protection 926657-2	Polybutylene Terephthalate (PBT)	Female Socket	-65 ░C	105 ░C	Free Hanging (In-Line)	2.54 mm	0.1 in	Contacts Not Included	2	1	Crimp	Black	Receptacle
TE Connectivity Raychem Cable Protection 1-926657-5	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	-65 ░C	105 ░C	Free Hanging (In-Line)	2.54 mm	0.1 in	Contacts Not Included	15	1	Crimp	Black	Receptacle
TE Connectivity Raychem Cable Protection 926657-6	Polybutylene Terephthalate (PBT)	Female Socket	-65 ░C	105 ░C	Free Hanging (In-Line)	2.54 mm	0.1 in	Contacts Not Included	6	1	Crimp	Black	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
