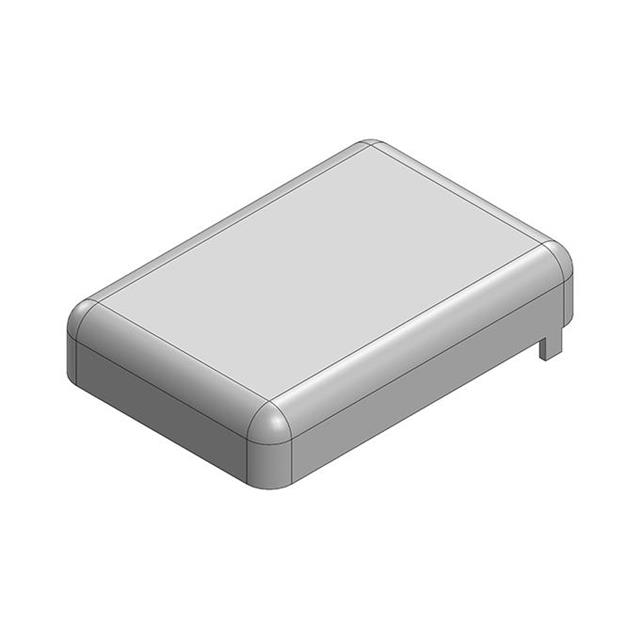

MS156-10S-NS

Active

Masach Tech Ltd.

RF SHIELD 0.417"X0.614" SOLDER

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.417"X0.614" SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

16 X 11 X 2.6MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD COVER (CRS)

Part	Mounting Type	Width - Overall [x]	Width - Overall [x]	Ventilation	Type	Height - Overall [z]	Height - Overall [z]	Length - Overall [x]	Length - Overall [x]	Height - Overall	Width - Overall [y]	Width - Overall [y]
Masach Tech Ltd. MS156-10C	Snap Fit	11 mm	0.433 in	Non-Vented	Cover	2.6 mm	0.102 in	0.63 "	16 mm
Masach Tech Ltd. MS156-10F	Solder				Frame		0.118 in	0.614 in	15.6 mm	3 mm	10.6 mm	0.417 in
Masach Tech Ltd. MS156-10C-NS	Snap Fit	11 mm	0.433 in	Non-Vented	Cover	2.6 mm	0.102 in	0.63 "	16 mm
Masach Tech Ltd. MS156-10S-NS	Solder			Non-Vented	Shield, 1-Piece		0.118 in	0.614 in	15.6 mm	3 mm	10.6 mm	0.417 in
Masach Tech Ltd. MS156-10F-NS	Solder				Frame		0.118 in	0.614 in	15.6 mm	3 mm	10.6 mm	0.417 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Shield, 1-Piece 0.417" (10.60mm) X 0.614" (15.60mm) Non-Vented Solder
