880633-1

Active

TE Connectivity AMP Connectors

.110 FASTON TAB TER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

.110 FASTON TAB TER

Technical Specifications

Parameters and characteristics for this part

Specification	880633-1

Contact Material	Brass
Gender	Male
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	0.106 "
Insulation Diameter [Max] [diameter]	2.69 mm
Insulation Diameter [Min] [diameter]	2 mm
Insulation Diameter [Min] [diameter]	0.079 in
Length - Overall [x]	14.8 mm
Length - Overall [x]	0.583 in
Mounting Type	Free Hanging (In-Line)
Tab Length	7.2 mm
Tab Length	0.283 "
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	2.79 mm
Tab Width	0.11 "
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	17.5 AWG

.110 FASTON TAB TER

Part	Termination	Terminal Type	Wire Gauge [Min]	Wire Gauge [Max]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Mounting Type	Gender	Insulation	Tab Length	Tab Length	Contact Material	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]
TE Connectivity AMP Connectors 880633-1	Crimp	Standard	17.5 AWG	20 AWG	0.106 "	2.69 mm	2 mm	0.079 in	Free Hanging (In-Line)	Male	Non-Insulated	7.2 mm	0.283 "	Brass	2.79 mm	0.11 "	0.02 "	0.51 mm	14.8 mm	0.583 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

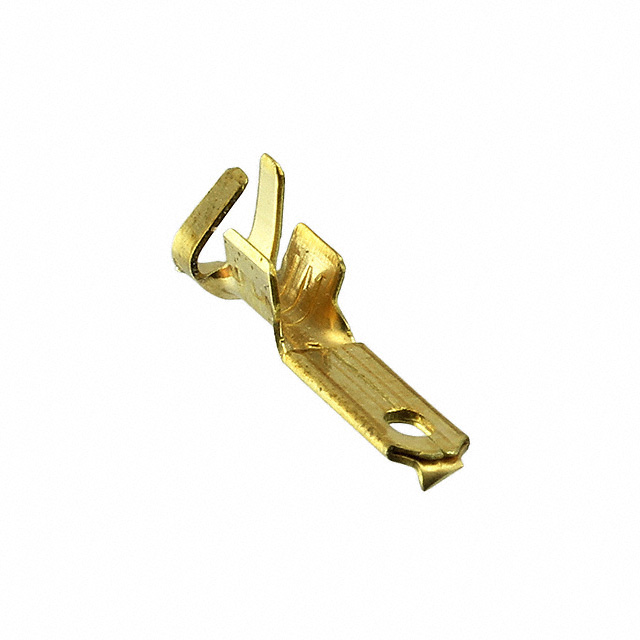

0.110" (2.79mm) Quick Connect Male 18-20 AWG Crimp Connector Non-Insulated

Technical documentation and resources

No documents available
