Description
General part information

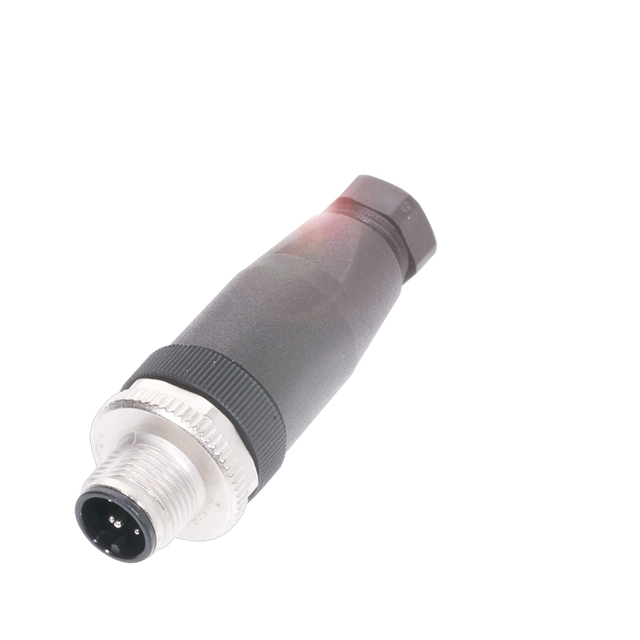

BCC06YA
5 Position Circular Connector Receptacle, Male Pins Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | BCC06YA |
|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA) |
| Cable Opening (Max) | 0.236 in |
| Cable Opening (Min) | 0.157 in |
| Color | Black, Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Material | Brass |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PA, Nylon, Polyamide |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 125 V |
| Voltage Rating (Type) | DC |
