M3WWK-6040K
Active3M
IDC CABLE - MPL60K/MC60F/MPL60K
Deep-Dive with AI
Search across all available documentation for this part.
M3WWK-6040K
Active3M
IDC CABLE - MPL60K/MC60F/MPL60K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3WWK-6040K | M3WWK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Multiple, Twisted Pair (Flat) | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Plug to Plug | Plug to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Flange, Polarizing Key | Flange, Polarizing Key |
| Length | - | 152.4 - 508 mm |
| Length | - | 1.67 ft |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 1.02 m | 1.02 - 914.4 mm |
| Length [x] | 3.34 ft | 1.5 - 3.34 ft |
| Number of Positions | 60 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3WWK Series
IDC CABLE - MPL16K/MC16M/MPL16K
| Part | Color | Cable Termination | Contact Finish Thickness | Contact Finish Thickness | Length [x] | Length [x] | Features | Contact Finish | Connector Type | Pitch - Cable | Pitch - Cable | Pitch - Connector | Pitch - Connector | Number of Positions | Shielding | Number of Rows | Number of Positions | Length | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Multiple, Ribbon | IDC | 0.76 Ám | 30 Áin | 457.2 mm | 1.5 ft | Flange, Polarizing Key | Gold | Plug to Plug | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 16 | Unshielded | 2 | ||||||
Multiple, Twisted Pair (Flat) | IDC | 0.76 Ám | 30 Áin | Flange, Polarizing Key | Gold | Plug to Plug | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Unshielded | 2 | 64 | 508 mm | 1.67 ft | ||||||
IDC | 0.76 Ám | 30 Áin | Flange, Polarizing Key | Gold | Plug to Plug | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Unshielded | 2 | 40 | 152.4 mm | 6 " | 0.5 ' | ||||||
IDC | 0.76 Ám | 30 Áin | 457.2 mm | 1.5 ft | Flange, Polarizing Key | Gold | Plug to Plug | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Unshielded | 2 | 36 | |||||||
Multiple, Ribbon | IDC | 0.76 Ám | 30 Áin | 914.4 mm | 3 ft | Flange, Polarizing Key | Gold | Plug to Plug | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Unshielded | 2 | 24 | ||||||
IDC | 0.76 Ám | 30 Áin | 914.4 mm | 3 ft | Flange, Polarizing Key | Gold | Plug to Plug | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Unshielded | 2 | 26 | |||||||
IDC | 0.76 Ám | 30 Áin | 457.2 mm | 1.5 ft | Flange, Polarizing Key | Gold | Plug to Plug | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Unshielded | 2 | 10 | |||||||
Multiple, Ribbon | IDC | 0.76 Ám | 30 Áin | 914.4 mm | 3 ft | Flange, Polarizing Key | Gold | Plug to Plug | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Unshielded | 2 | 60 | ||||||
Multiple, Twisted Pair (Flat) | IDC | 0.76 Ám | 30 Áin | Flange, Polarizing Key | Gold | Plug to Plug | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Unshielded | 2 | 60 | 508 mm | 1.67 ft | ||||||
Multiple, Twisted Pair (Flat) | IDC | 0.76 Ám | 30 Áin | 1.02 m | 3.34 ft | Flange, Polarizing Key | Gold | Plug to Plug | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | Unshielded | 2 | 60 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 60.96 | |
| 10 | $ 47.27 | |||
| 25 | $ 42.93 | |||
| 50 | $ 40.00 | |||
| 100 | $ 37.35 | |||
| 250 | $ 34.23 | |||
Description
General part information
M3WWK Series

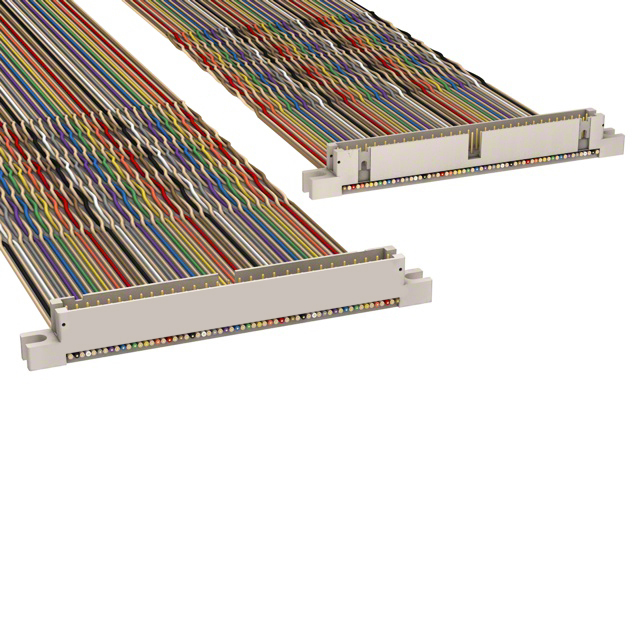

60 Position Cable Assembly Rectangular Plug to Plug 3.34' (1.02m)
