SML-LX1210IIC-TR

Active

Lumex Opto/Components Inc.

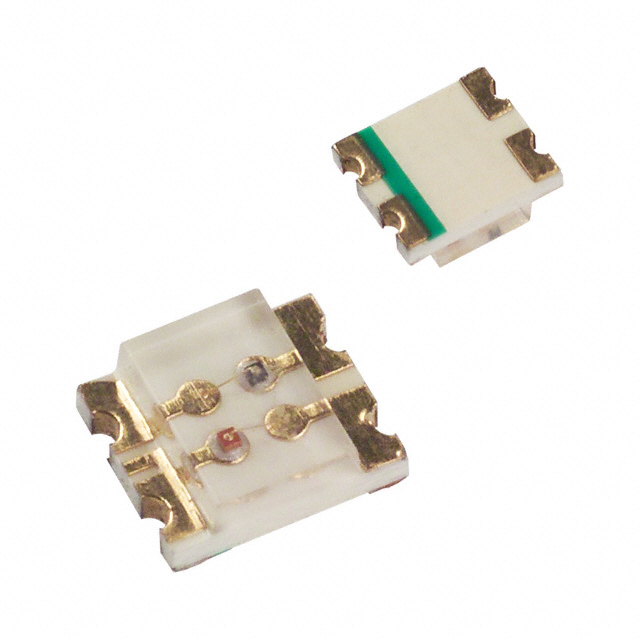

LED RED CLEAR 1210 SMD

Deep-Dive with AI

Search across all available documentation for this part.

SML-LX1210IIC-TR

Active

Lumex Opto/Components Inc.

LED RED CLEAR 1210 SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SML-LX1210 Series

Red LED Indication - Discrete 2V 1210 (3225 Metric)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-LX1210IIC-TR	SML-LX1210 Series

Color	Red	Green, Red, Yellow
Configuration	Standard	Standard, Independent
Current - Test	20 mA	20 mA
Current - Test	-	20mA Red, 20mA Yellow
Height (Max) [Max] [z]	1.1 mm	1.1 mm
Lens Color	Colorless	Colorless
Lens Size [x]	2 mm	2 mm
Lens Size [y]	2.7 mm	2.7 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Clear	Clear
Millicandela Rating	10 mcd	10 - 15 mcd
Millicandela Rating	-	10mcd Green, 15mcd Red, 10mcd Yellow, 10mcd Red
Mounting Type	Surface Mount	Surface Mount
Package / Case	1210	1210
Package / Case	3225 Metric	3225 Metric
Supplier Device Package	1210	1210
Viewing Angle	160 °	140 - 160 °
Voltage - Forward (Vf) (Typ)	2 V	1.7 - 2.2 V
Wavelength - Peak	635 nm	565 - 660 nm
Wavelength - Peak	-	585 - 635 nm

SML-LX1210 Series

LED GREEN CLEAR 1210 SMD

Part	Supplier Device Package	Package / Case	Package / Case	Configuration	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Style	Millicandela Rating	Wavelength - Peak	Color	Viewing Angle	Lens Color	Height (Max) [Max] [z]	Current - Test	Lens Size [x]	Lens Size [y]	Lens Transparency	Millicandela Rating	Wavelength - Peak [custom]	Current - Test
Lumex Opto/Components Inc. SML-LX1210GGC-TR	1210	1210	3225 Metric	Standard	2.2 V	Surface Mount	Rectangle with Flat Top	10 mcd	565 nm	Green	160 °	Colorless	1.1 mm	20 mA	2 mm	2.7 mm	Clear
Lumex Opto/Components Inc. SML-LX1210SRSGC-TR	1210	1210	3225 Metric	Independent	1.7 V, 2.2 V	Surface Mount	Rectangle with Flat Top		565 nm, 660 nm	Green, Red	160 °	Colorless	1.1 mm	20 mA, 20 mA	2 mm	2.7 mm	Clear	10mcd Green, 15mcd Red
Lumex Opto/Components Inc. SML-LX1210IIC-TR	1210	1210	3225 Metric	Standard	2 V	Surface Mount	Rectangle with Flat Top	10 mcd	635 nm	Red	160 °	Colorless	1.1 mm	20 mA	2 mm	2.7 mm	Clear
Lumex Opto/Components Inc. SML-LX1210YGC-TR	1210	1210	3225 Metric	Independent	2.1 V, 2.2 V	Surface Mount	Rectangle with Flat Top		565 nm, 585 nm	Green, Yellow	140 °	Colorless	1.1 mm	20 mA, 20 mA	2 mm	2.7 mm	Clear	10mcd Green, 10mcd Yellow
Lumex Opto/Components Inc. SML-LX1210IGC-TR	1210	1210	3225 Metric	Independent	2 V, 2.2 V	Surface Mount	Rectangle with Flat Top		565 nm, 635 nm	Green, Red	160 °	Colorless	1.1 mm	20 mA, 20 mA	2 mm	2.7 mm	Clear	10mcd Green, 10mcd Red
Lumex Opto/Components Inc. SML-LX1210IYC-TR	1210	1210	3225 Metric	Independent	2 V, 2.1 V	Surface Mount	Rectangle with Flat Top	10 mcd, 10 mcd		Red, Yellow	160 °	Colorless	1.1 mm		2 mm	2.7 mm	Clear		585 nm, 635 nm	20mA Red, 20mA Yellow
Lumex Opto/Components Inc. SML-LX1210SRSRC-TR	1210	1210	3225 Metric	Standard	1.7 V	Surface Mount	Rectangle with Flat Top	15 mcd	660 nm	Red	160 °	Colorless	1.1 mm	20 mA	2 mm	2.7 mm	Clear
