4310.0030
ObsoleteSCHURTER Inc.
PWR ENT PLUG IEC320-C15 STR SCRW
4310.0030
ObsoleteSCHURTER Inc.
PWR ENT PLUG IEC320-C15 STR SCRW
Description
General part information
4310.0030

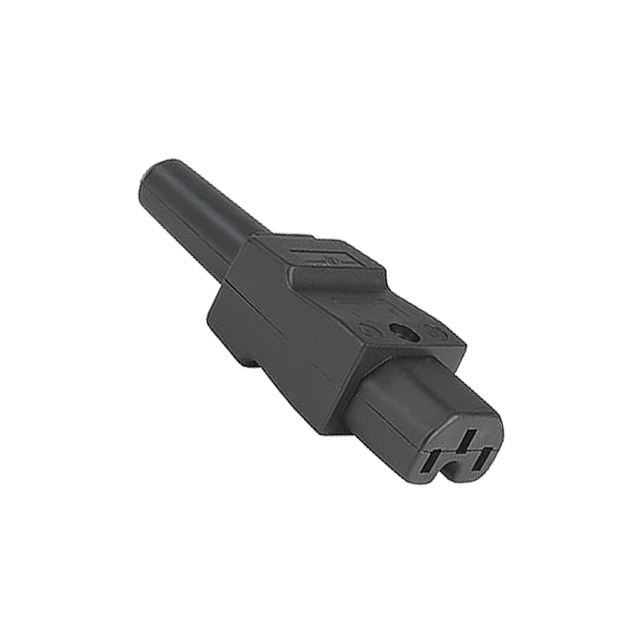

Power Entry Connector Plug, Female Sockets IEC 320-C15 Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | 4310.0030 |
|---|---|
| Accomodates a Fuse | No |
| Approval Agency | PSE, VDE, TUV, cCSAus |
| Connector Style | IEC 320-C15 |
| Connector Type | Female Sockets, Plug |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered, Commercial |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Termination | Screw |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
