Technical Specifications
Parameters and characteristics for this part
| Specification | APX809S-23SR-7 |
|---|---|
| Mounting Type | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Push-Pull, Totem Pole |
| Package / Case | TO-236-3, SOT-23-3, SC-59 |
| Package Name | SOT-23-3 |
| Reset | Active Low |
| Reset Timeout (Minimum) | 140 ms |
| Type | Simple Reset/Power-On Reset |
| Voltage - Threshold | 2.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | <2d |
| 10 | $ 0.18 | |||
| 25 | $ 0.16 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | <2d | |
| 6000 | $ 0.11 | |||
| 9000 | $ 0.10 | |||
| 15000 | $ 0.10 | |||
| 21000 | $ 0.10 | |||
| 30000 | $ 0.10 | |||
CAD
3D models and CAD resources for this part
Description
General part information

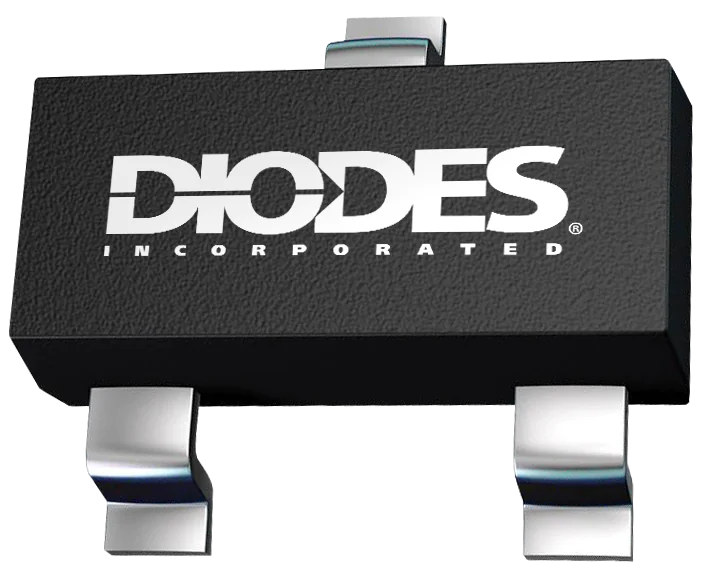

APX809S-23SR-7
The APX809S/810S are used for microprocessor (µP) supervisory circuits to monitor the power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V and +2.5V powered circuits.
