21670.6

Active

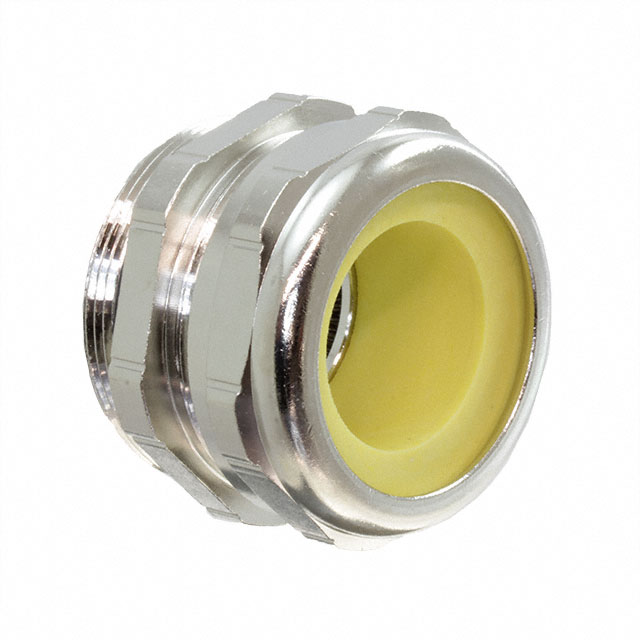

Pflitsch

CABLE GLAND 23.88-27.94MM PG36

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 23.88-27.94MM PG36

Technical Specifications

Parameters and characteristics for this part

Specification	21670.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	1.1 in
Outside Cable Diameter (Max) [Max] [diameter]	27.94 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.94 "
Outside Cable Diameter (Min) [Min] [diameter]	23.88 mm
Panel Hole Size [diameter]	1.85 in
Panel Hole Size [diameter]	47 mm
Thread Length	0.35 "
Thread Length	8.89 mm
Thread Size	PG36
Type	Cable Gland

Part	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Ingress Protection	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Color	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Type
Pflitsch 21670.6	1.85 in	47 mm	IP68 - Dust Tight Waterproof; NEMA 4X	Brass Nickel Plated	0.94 "	23.88 mm	0.35 "	8.89 mm	Silver	Sealing Ring	1.1 in	27.94 mm	PG36	-40 °C	300 °C	Cable Gland

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG36 Silver
