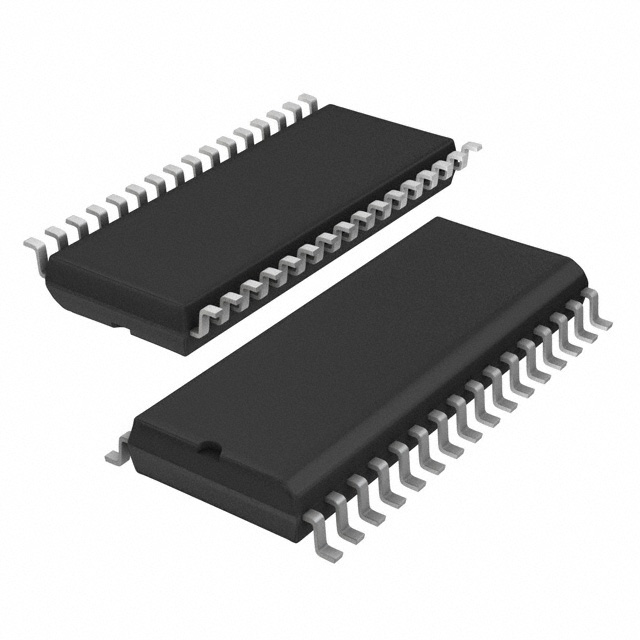

TFA9810T/N1,112 - 32-SOIC SOT287-1

TFA9810T/N1,112

Obsolete
NXP USA Inc.

IC AMP CLASS D STEREO 15W 32SO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
TFA9810T/N1,112 - 32-SOIC SOT287-1

TFA9810T/N1,112

Obsolete
NXP USA Inc.

IC AMP CLASS D STEREO 15W 32SO

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationTFA9810T/N1,112TFA981 Series
FeaturesDifferential Inputs, Short-Circuit and Thermal ProtectionDepop, Short-Circuit and Thermal Protection, Digital Inputs, I2S, Mute, Volume Control, I2C, Differential Inputs
Max Output Power x Channels @ Load15 W15 - 18 W
Max Output Power x Channels @ Load-2
Max Output Power x Channels @ Load [custom]8 Ohm8 Ohm
Max Output Power x Channels @ Load [x]22
Mounting TypeSurface MountSurface Mount
Operating Temperature [Max]85 °C85 °C
Operating Temperature [Min]-40 °C-40 °C
Output Type2-Channel (Stereo)2-Channel (Stereo)
Package / Case0.295 in0.295 in
Package / Case7.5 mm7.5 mm
Package / Case32-SOIC48-VFQFN Exposed Pad, 32-SOIC
Supplier Device Package32-SO48-HVQFN (7x7), 32-SO
TypeClass DClass D
Voltage - Supply [Max]20 V20 V
Voltage - Supply [Min]8 V8 V

TFA981 Series

IC AMP CLASS D STER 15W 48HVQFN

PartVoltage - Supply [Min]Voltage - Supply [Max]Package / CaseFeaturesMax Output Power x Channels @ Load [x]Max Output Power x Channels @ LoadMax Output Power x Channels @ Load [custom]TypeSupplier Device PackageOutput TypeOperating Temperature [Max]Operating Temperature [Min]Mounting TypeMax Output Power x Channels @ Load [custom]Package / CasePackage / Case
NXP USA Inc.
TFA9812HN/N1,518
8 V
20 V
48-VFQFN Exposed Pad
Depop, Digital Inputs, I2C, I2S, Mute, Short-Circuit and Thermal Protection, Volume Control
2
15 W
8 Ohm
Class D
48-HVQFN (7x7)
2-Channel (Stereo)
85 °C
-40 °C
Surface Mount
NXP USA Inc.
TFA9815T/N1,112
8 V
20 V
32-SOIC
Differential Inputs, Short-Circuit and Thermal Protection
18 W
Class D
32-SO
2-Channel (Stereo)
85 °C
-40 °C
Surface Mount
2
0.295 in
7.5 mm
NXP USA Inc.
TFA9812HN/N1,557
8 V
20 V
48-VFQFN Exposed Pad
Depop, Digital Inputs, I2C, I2S, Mute, Short-Circuit and Thermal Protection, Volume Control
2
15 W
8 Ohm
Class D
48-HVQFN (7x7)
2-Channel (Stereo)
85 °C
-40 °C
Surface Mount
NXP USA Inc.
TFA9810T/N1,112
8 V
20 V
32-SOIC
Differential Inputs, Short-Circuit and Thermal Protection
2
15 W
8 Ohm
Class D
32-SO
2-Channel (Stereo)
85 °C
-40 °C
Surface Mount
0.295 in
7.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

TFA981 Series

Amplifier IC 2-Channel (Stereo) Class D 32-SO
