13RS050075
ActiveEssentra Components
ROUND SPACER, .438 ID, .500 OD,
13RS050075
ActiveEssentra Components
ROUND SPACER, .438 ID, .500 OD,
Description
General part information
13RS050075

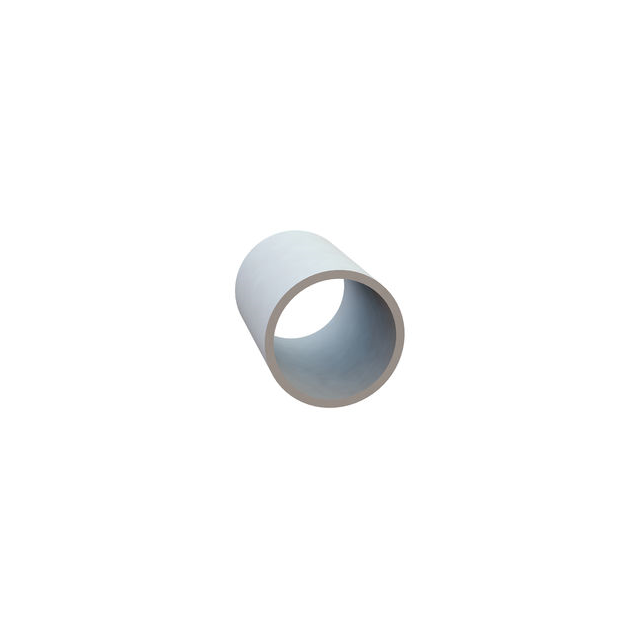

Round Spacer Unthreaded Nylon 0.750" (19.05mm) 3/4" Natural
Technical Specifications
Parameters and characteristics for this part
| Specification | 13RS050075 |
|---|---|
| Between Board Height | 0.75 in |
| Color | Natural |
| Diameter - Inside | 0.438 in |
| Diameter - Outside | 0.5 in |
| Diameter - Outside (Nominal) | 0.5 in |
| Gender | Female |
| Length - Overall | 0.75 in |
| Length - Overall (Max) | 0.75 in |
| Length - Overall (Min) | 0.75 in |
| Material | Nylon |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
