6550.17.AA

Active

Huber+Suhner, Inc.

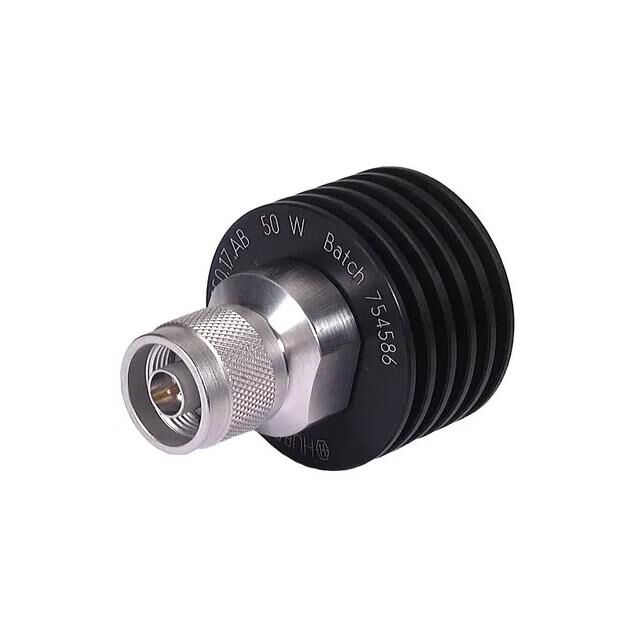

RF TERMINATOR, N TYPE PLUG, 50 OHM, 5GHZ ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

6550.17.AA

Active

Huber+Suhner, Inc.

RF TERMINATOR, N TYPE PLUG, 50 OHM, 5GHZ ROHS COMPLIANT: YES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 279.59
Newark	Each	1	$ 285.72
		10	$ 265.75
		25	$ 256.54
		50	$ 247.32
		100	$ 235.03

Description

General part information

- Series

Terminator Coax Connector Plug, Male Pin N Type 50 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6550.17.AA	- Series

	-	-
Accessory Type	-	Cap (Cover), Protective
Adapter Series	-	N to N
Adapter Type	-	Jack to Jack
Body Finish	White Bronze	Gold, White Bronze, Silver
Body Material	Brass	Stainless Steel, Beryllium Copper, Brass, Aluminum
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Center Gender	-	Female to Female
Color	-	Silver
Connector Style	N Type	TNC, SMA, 7/16 DIN, N Type, BNC
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack, Adapter, Jack to Plug
Contact Finish	Gold	Gold, Silver
Contact Material	Brass	Brass, Beryllium Copper, Bronze
Conversion Type	-	Same Series
Convert From (Adapter End)	-	N Jack, Female Socket
Convert To (Adapter End)	-	Female Socket, N Jack
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE), Polyphenylene Ether (PPE)
Frequency - Max [Max]	5 GHz	1 - 40 GHz
Impedance	50 Ohms	50 Ohms
Mating Cycles	-	500
Mounting Feature	-	Bulkhead
Mounting Type	Free Hanging, Cap	Free Hanging, Cap, Free Hanging (In-Line)
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Style	-	Straight

- Series

RF TERMINATOR, TNC PLUG, 50 OHM, 12.4GHZ ROHS COMPLIANT: YES

Part	Body Material	Mounting Type	Connector Style	Impedance	Dielectric Material	Frequency - Max [Max]	Connector Type	Contact Finish	Contact Material	Body Finish	Color	Accessory Type
Huber+Suhner, Inc. 6506.26.A	Stainless Steel	Cap, Free Hanging	TNC	50 Ohms	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	12.4 GHz	Male Pin, Plug	Gold	Brass
Huber+Suhner, Inc. 9076.99.N114-50
Huber+Suhner, Inc. 6515.19.A	Beryllium Copper	Cap, Free Hanging	SMA	50 Ohms	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	12.4 GHz	Male Pin, Plug	Gold	Beryllium Copper	Gold
Huber+Suhner, Inc. 6550.41.AB	Brass	Cap, Free Hanging	7/16 DIN	50 Ohms	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	2 GHz	Male Pin, Plug	Silver	Brass	White Bronze
Huber+Suhner, Inc. 6515.17.A	Stainless Steel	Cap, Free Hanging	N Type	50 Ohms	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	12.4 GHz	Male Pin, Plug	Gold	Beryllium Copper
Huber+Suhner, Inc. 6506.01.A	Stainless Steel	Cap, Free Hanging	BNC	50 Ohms	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	4 GHz	Male Pin, Plug	Gold	Brass
Huber+Suhner, Inc. 6500.41.A	Brass	Cap, Free Hanging	7/16 DIN	50 Ohms		8 GHz	Male Pin, Plug	Silver	Bronze	Silver
Huber+Suhner, Inc. 6506.41.A	Brass	Cap, Free Hanging	7/16 DIN	50 Ohms		8 GHz	Male Pin, Plug	Silver	Bronze	Silver
Huber+Suhner, Inc. 6560.41.BB	Brass	Cap, Free Hanging	7/16 DIN	50 Ohms	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	2 GHz	Female Socket, Jack	Silver	Beryllium Copper	White Bronze
Huber+Suhner, Inc. 9075.99.0061											Silver	Cap (Cover), Protective
