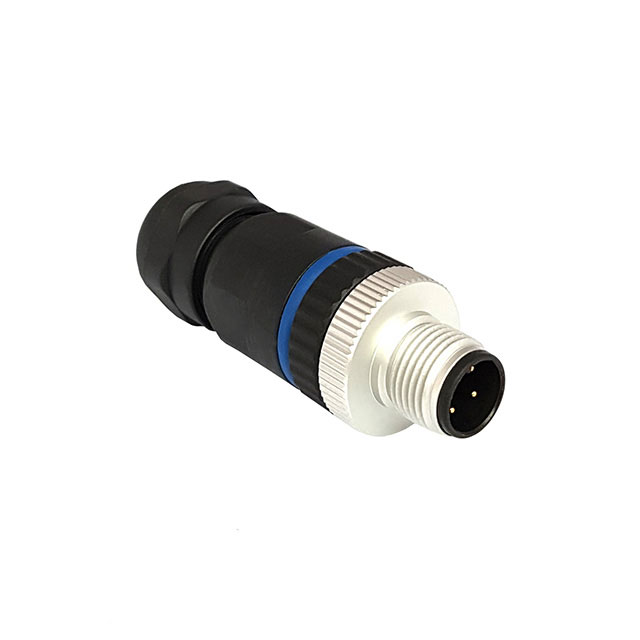

SENSOR CONNECTOR, BUCCANEER M12 SERIES, M12, PLUG, 4 CONTACTS, SCREW PIN, STRAIGHT CABLE MOUNT

Find alt

Alpha

PXPPAM12FIM04ASTPG9

Active

BULGIN LIMITED

SENSOR CONNECTOR, BUCCANEER M12 SERIES, M12, PLUG, 4 CONTACTS, SCREW PIN, STRAIGHT CABLE MOUNT

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

Buccaneer M Series

The M-series Buccaneer circular automation connectors from Bulgin provide an ideal connectivity solution for industrial automation technologies that require fast, secure and reliable connections with a high degree of environmental protection. Featuring a M-style threaded locking nut, Bulgin’s M-series offers an extensive choice of robust industry standard interconnect solutions for automation and control applications including M5 (waterproof), M8, M12, M16 and M23 variants. With A, B, D coded connector variants available throughout the range, Bulgin’s automation connectors are ideal for ensuring consistent and reliable actuator/sensor, fieldbus and Ethernet connections. Designed to decrease downtime and increase production efficiency, M-series provides reliable and uncompromised data, signal and power transmissions for industrial automation systems in harsh environments. These IP67 rated connectors range include field installable connectors, receptacles and overmoulded cable variants.

Technical Specifications

Parameters and characteristics for this part

Specification	PXPPAM12FIM04ASTPG9

Applications	Medical, Industrial, Instrumentation
Backshell Material, Plating	Nylon, Polyamide (PA)
Cable Opening (Max)	0.315 in
Cable Opening (Min)	0.181 in
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	4 A
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-4
Termination	Screw
Voltage Rating	250 V

Buccaneer M Series

...

Part	1st Connector Number of Positions Loaded	Cable Material	Color	Shielding	1st Connector Shell Size - Insert	2nd Connector Type	Assembly Configuration	1st Connector Orientation	1st Connector Mounting Type	1st Connector Number of Positions	Cable Type	Usage	1st Connector Type	Ingress Protection Description	Ingress Protection IP Rating	1st Connector Gender	Length	Features	Convert To (Adapter End)	Convert From (Adapter End) Type	Convert From (Adapter End) Positions	Current Rating	Shell Finish	Mounting Type	Orientation	Termination	Number of Positions	Voltage Rating	Shell Size - Insert	Cable Opening (Max)	Cable Opening (Min)	Shell Material	Fastening Type	Connector Type	Contact Finish - Mating	Primary Material	Operating Temperature (Min)	Operating Temperature (Max)	Connector Pin Count
BULGIN LIMITED PXPTPU12RAF04DCL150PUR	All	Polyurethane (PUR)	Black	Unshielded	M12	Wire Leads	Standard	D	Free Hanging (In-Line)	4 positions	Round	Industrial Environments	Plug Right Angle	Dust Tight Waterproof	IP67	Female Sockets	49.2 ft
BULGIN LIMITED PXPPVC12RAF05ACL100PVC	All	Polyvinyl Chloride (PVC)	Black	Unshielded	M12	Wire Leads	Standard	A	Free Hanging (In-Line)	5 positions	Round	Industrial Environments	Plug Right Angle	Dust Tight Waterproof	IP67	Female Sockets	32.8 ft
BULGIN LIMITED PXPPVC12FIM04ACL100PVC	All	Polyvinyl Chloride (PVC)	Black	Unshielded	M12	Wire Leads	Standard	A	Free Hanging (In-Line)	4 positions	Round	Industrial Environments	Receptacle	Dust Tight Waterproof	IP67	Male Pins	32.8 ft
BULGIN LIMITED PXPPVC12RAM05BCL050PVC	All	Polyvinyl Chloride (PVC)	Black	Unshielded	M12	Wire Leads	Standard	B	Free Hanging (In-Line)	5 positions	Round	Industrial Environments	Receptacle Right Angle	Dust Tight Waterproof	IP67	Male Pins	16.4 ft
BULGIN LIMITED PXPTPU12FBF12ACL030PUR	All	Polyurethane (PUR)	Black	Unshielded	M12	Wire Leads	Standard	A	Free Hanging (In-Line)	12 positions	Round	Industrial Environments	Plug	Dust Tight Waterproof	IP67	Female Sockets	9.84 ft
BULGIN LIMITED PXMBNI12RAF08XRJM16			Black															Right Angle	8p8c (RJ45) Female Jack Modular	Circular Female Sockets M12	8 Pos
BULGIN LIMITED PXMBNI12FIM04ASCPG7			Silver											Dust Tight Waterproof	IP67			Backshell				4 A	Nickel	Free Hanging (In-Line)	A	Solder Cup	4	250 V	M12-4	0.315 in	0.181 in	Brass	Threaded	Male Pins Receptacle	Gold	Metal	-25 °C	80 °C
BULGIN LIMITED PXPPVC12RAF04DCL030PVC	All	Polyvinyl Chloride (PVC)	Black	Unshielded	M12	Wire Leads	Standard	D	Free Hanging (In-Line)	4 positions	Round	Industrial Environments	Plug Right Angle	Dust Tight Waterproof	IP67	Female Sockets	9.84 ft
BULGIN LIMITED PXPTPU12FBF08XRJ020PU			Teal								Round	Cat6a Industrial Environments - IP67					6.56 ft																	8p8c Circular Female to RJ45					8 pos
BULGIN LIMITED PXMBNI05FPM04AFL003	All		Multiple	Unshielded	M5	Wire Leads	Standard	A	Panel Mount	4 positions	Individual	Industrial Environments	Receptacle	Dust Tight Waterproof	IP67	Male Pins	0.98 ft
